Shaft & Gear Sets Parker Hydraulic gear Pump Parts

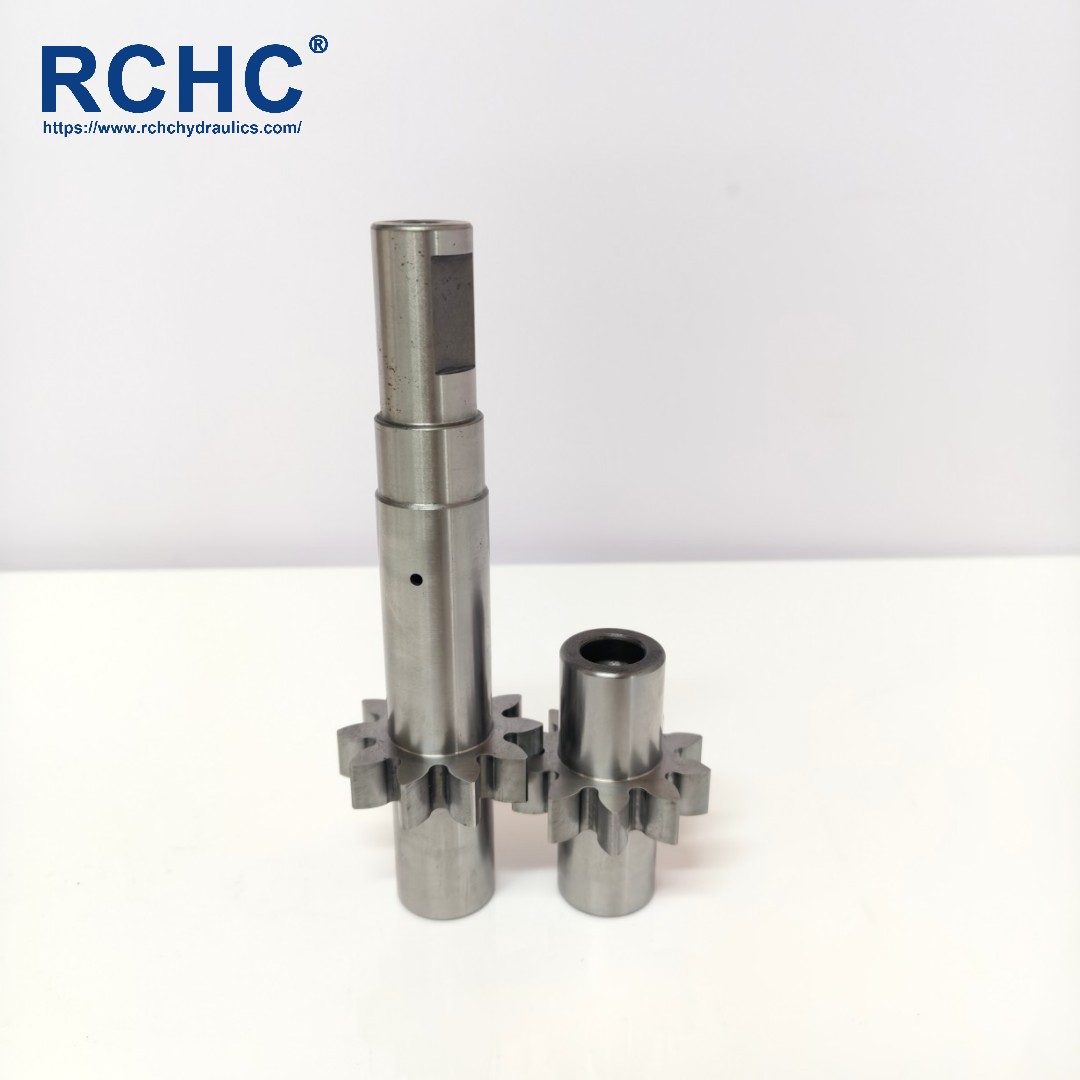

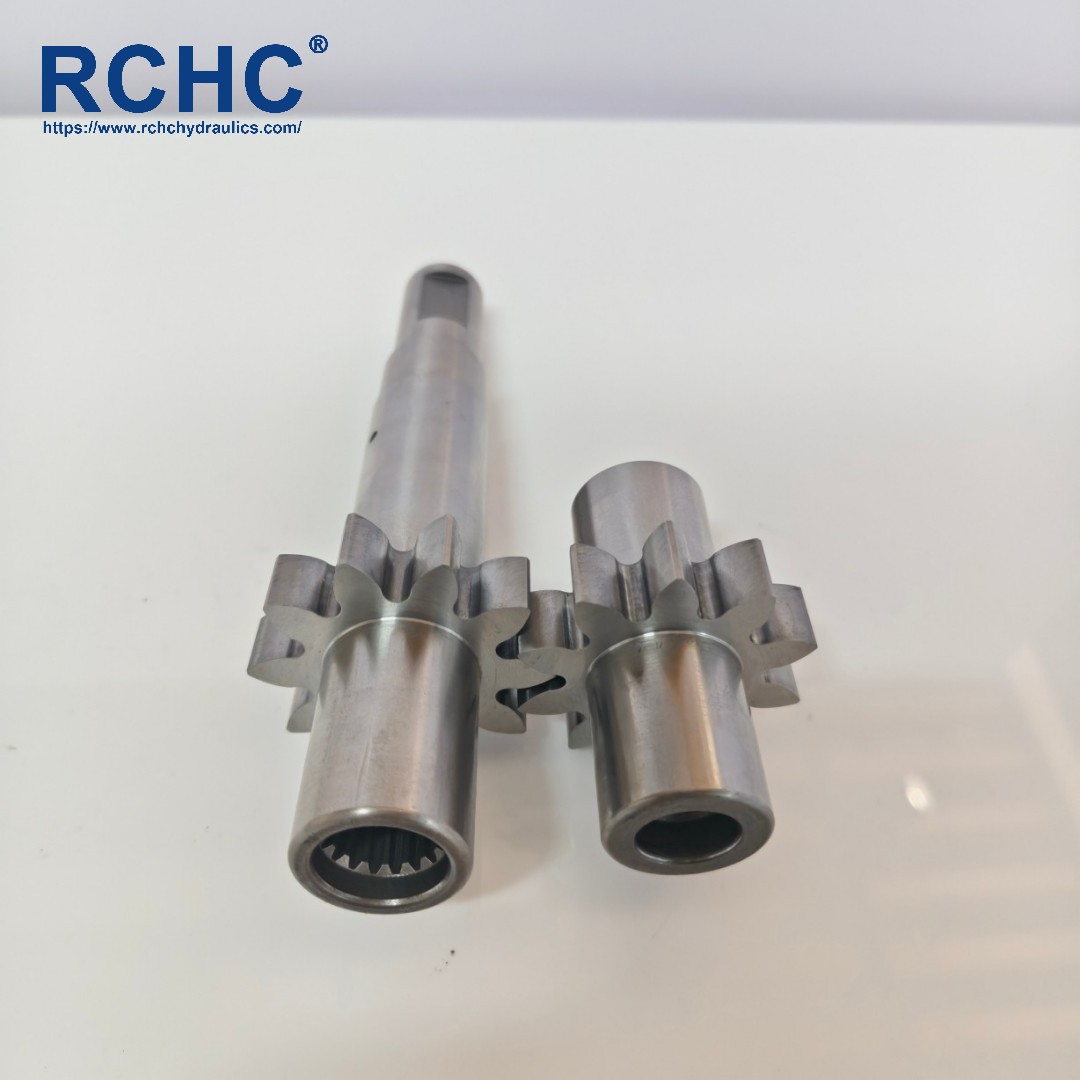

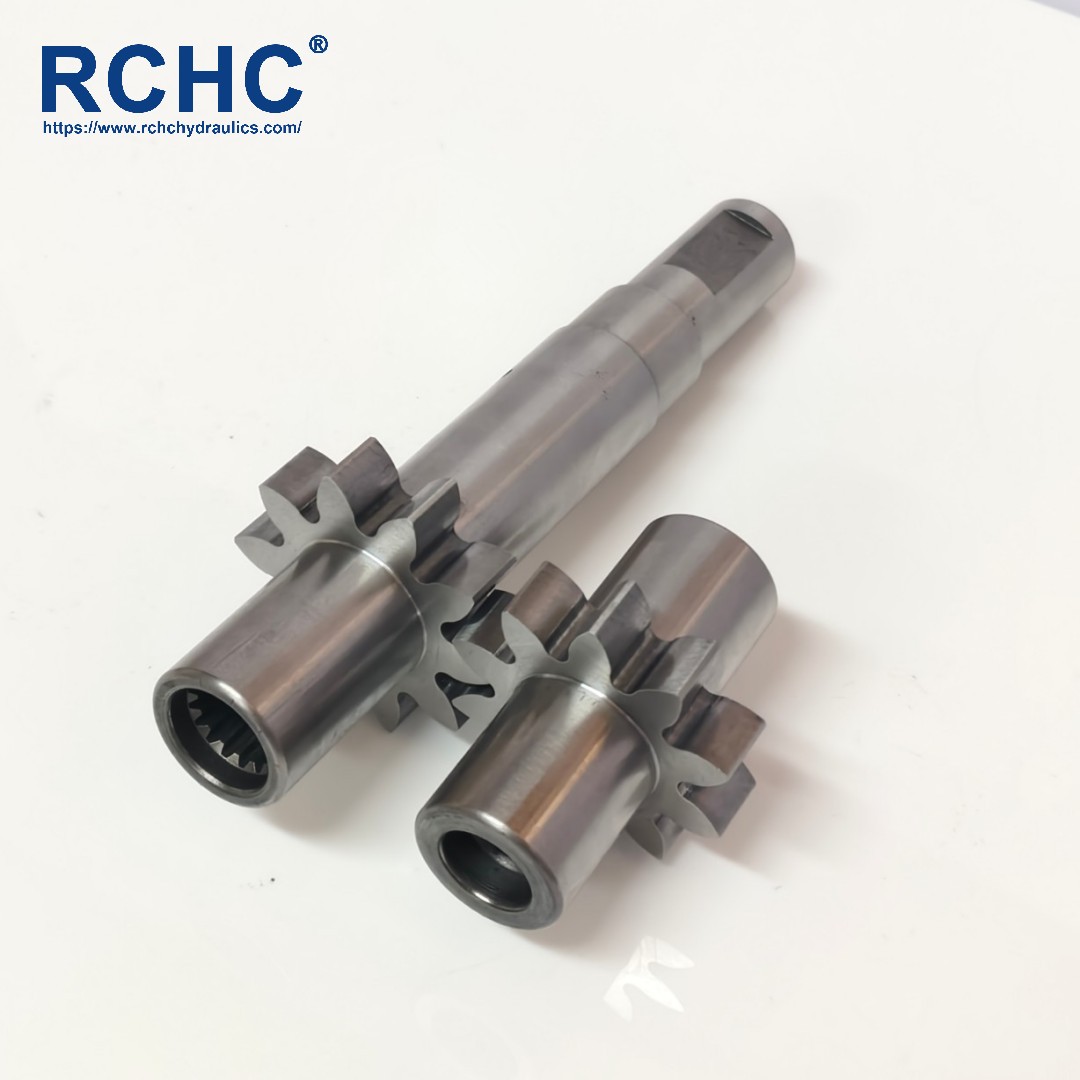

The shaft and gear set is the foundational mechanical heart of an external hydraulic gear pump. Consisting of a precision-matched drive gear (integrating the input shaft) and a driven gear (idler gear), this assembly executes critical system processes:

• Hydraulic Flow Generation: As the drive shaft rotates the meshing gears, fluid is drawn from the inlet port, trapped between the gear teeth and the housing walls, and forcibly discharged into the high-pressure system lines.
• Matched-Set Precision: RCHC shafts and gears are manufactured and supplied strictly as matched pairs. This ensures perfect involute tooth profiles mesh flawlessly, reducing internal fluid pulsation, minimizing operating noise, and preventing localized friction wear.
• High Torque Transmission: Engineered to withstand rapid pressure spikes and continuous rotational fatigue under full system load configurations (exceeding 3,000 PSI / 207 bar).

2. Premium Material & Metallurgical Engineering

RCHC enforces strict material controls and surface finishing protocols to counter mechanical bending and gear tooth pitting:

• Base Core Material: Forged from premium high-strength Alloy Steel (AISI 8620 / 20CrNiMo), renowned for its superior core toughness and resistance to high torsional shocks.
• Advanced Case Hardening: All gears undergo precision gas carburizing and heat treatment, achieving a deep case hardness of HRC 58-62. This process yields an incredibly hard, wear-resistant outer shell while maintaining a ductile inner core to resist fracture under shock loads.
• Precision Tooth Grinding: Gear teeth profiles are finished on state-of-the-art CNC grinding machines. This provides a clean profile finish that minimizes backlash, dramatically optimizes volumetric output, and prevents early thrust plate scoring.

PGP030/031
SHAFT & GEAR TYPE 30 (0.875”Ø×1/4″×3/8″×1″key)	312-29XX-730
SHAFT & GEAR TYPE 25 (0.875ӯ-13-Tooth spline)	312-29XX-230
SHAFT & GEAR TYPE 43 (1.00″Ø×1/4″×14″×1 1/4″key)	312-29XX-740
SHAFT & GEAR TYPE 65 TYPE 2 (0.875ӯ-13-Tooth spline)	312-29XX-430
SHAFT & GEAR TYPE 65 TYPE 98(1″Ø-15-Tooth spline	312-29XX-240
GEAR SET ONLY	312-28XX-000
PGP050/051
SHAFT & GEAR 14 TOOTH SPLINE 1.228″maj.dia.TYPE 7	313-29XX-250
SHAFT & GEAR 1.250″KEYED(5/16″)TYPE 11	313-29XX-750
SHAFT & GEAR SET 13 TOOTH SPLINE 0.858″maj.dia TYPE 25	313-29XX-230
SHAFT & GEAR SET 0.9984″dia.KEYED(1/4″×3/8″×1 1/4″)TYPE 43	313-29XX-740
SHAFT & GEAR 14 TOOTH SPLINE 1.228″maj.dia.TYPE 53 TYPE 2	313-29XX-450
SHAFT & GEAR SET 13 TOOTH SPLINE 0.858″maj.dia TYPE 65 TYPE 2	313-29XX-430
GEAR  SET  ONLY	313-28XX-000
PGP075/076
SHAFT & GEAR 14 TOOTH SPLINE 1.228″maj.dia. TYPE 7	316-29XX-250
SHAFT& GEAR 1.250″KEYED (5/16″)TYPE 11	316-29XX-750
GEAR  SET  ONLY	316-28XX-000
PGP315
SHAFT & GEAR SAE”A”0.625″dia.KEYED TYPE 97	326-29XX-920
SHAFT & GEAR SAE”A”9 TOOTH SPLINE 0.609″maj.dia.TYPE 96	326-29XX-420
SHAFT & GEAR SAE “B”0.875″dia.KEYED TYPE 66	326-29XX-930
SHAFT & GEAR SAE”B”13-TOOTH SPLINE 0.858″maj.dia.TYPE 65	326-29XX-430
SHAFT & GEAR  TAPERED  M12×1.5  THD & 3X5  KEYED  TYPE 60	326-29XX-701
SHAFT & GEAR  TAPERED  5/16  INTERNAL  THD #6  WDF  KEY  TYPE 56	326-29XX-604
GEAR SET ONLY	326-28XX-000
PGP330
SHAFT & GEAR SET 13 TOOTH SPLINE 0.858″maj.dia TYPE 25	324-29XX-230
SHAFT & GEAR SET 0.9984″dia.KEYED(1/4″×3/8″×1 1/4″)TYPE43	324-29XX-740
SHAFT & GEAR SET 15 TOOTH SPLINE 0.983″maj.dia TYPE 98	324-29XX-240
GEAR  SET  ONLY	324-28XX-000
PGP350
SHAFT & GEAR 14 TOOTH SPLINE 1.228″maj.dia.TYPE7	323-29XX-250
SHAFT & GEAR 1.250″KEYED (5/16″)TYPE 11	323-29XX-750
SHAFT & GEAR SET 13 TOOTH SPLINE 0.858″maj.dia TYPE 25	323-29XX-230
SHAFT & GEAR SET 0.9984″dia.KEYED(1/4″×3/8″×1 1/4″)TYPE 43	323-29XX-740
SHAFT & GEAR 15 TOOTH SPLINE 0,980″maj.dia.TYPE 98	323-29XX-240
SHAFT & GEAR 1.250″dia.KEYED (5/16″×5/16″×2 1/4″)TYPE73	323-29XX-752
GEAR SET ONLY	323-28XX-000
PGP365
SHAFT & GEAR 14 TOOTH SPLINE 1.228″maj.dia.TYPE 7	322-29XX-250
SHAFT & GEAR 1.250″KEYED (5/16″)TYPE 11	322-29XX-750
SHAFT & GEAR SET 13 TOOTH SPLINE 0.858″maj.dia TYPE 25	322-29XX-230
GEAR SET ONLY	322-28XX-000
