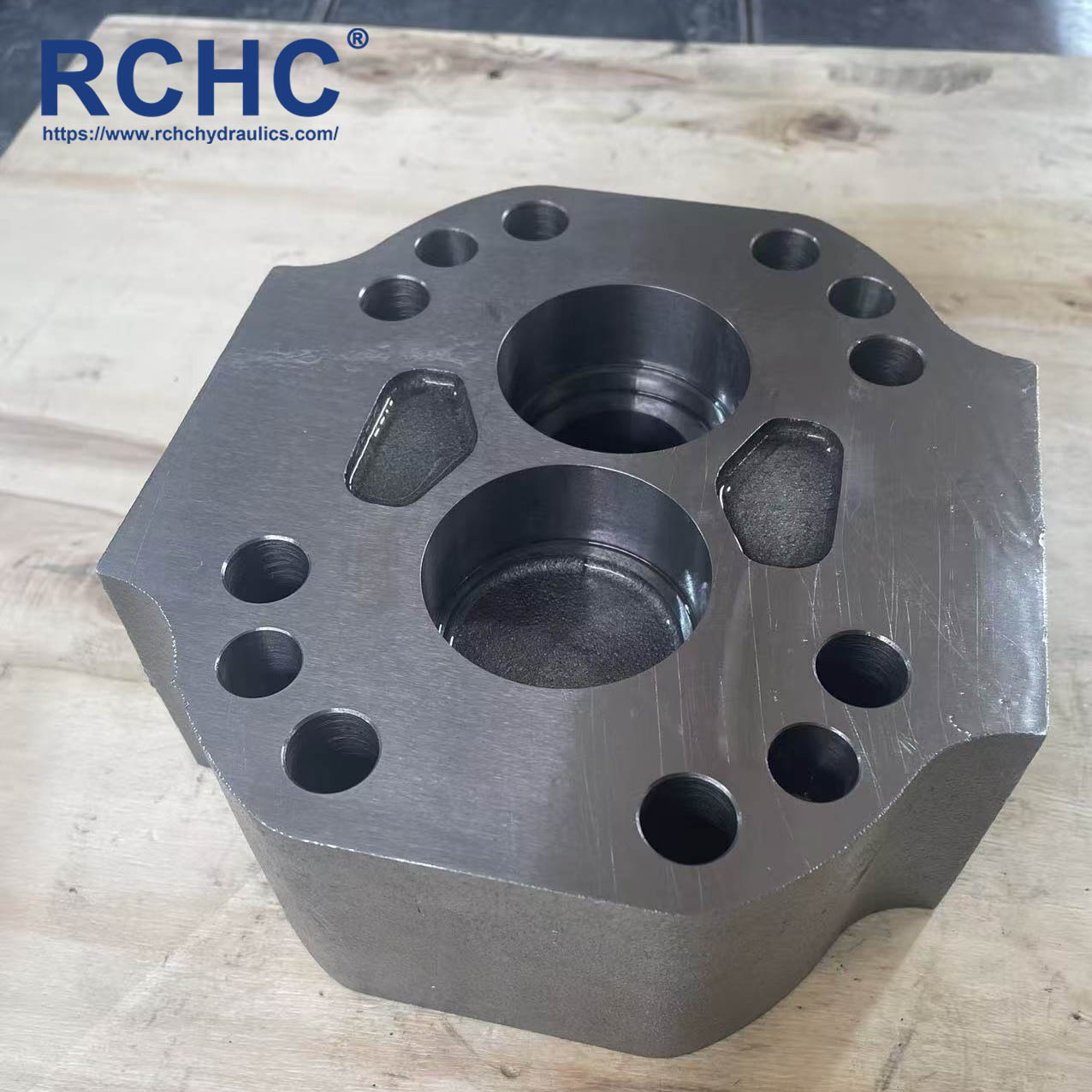

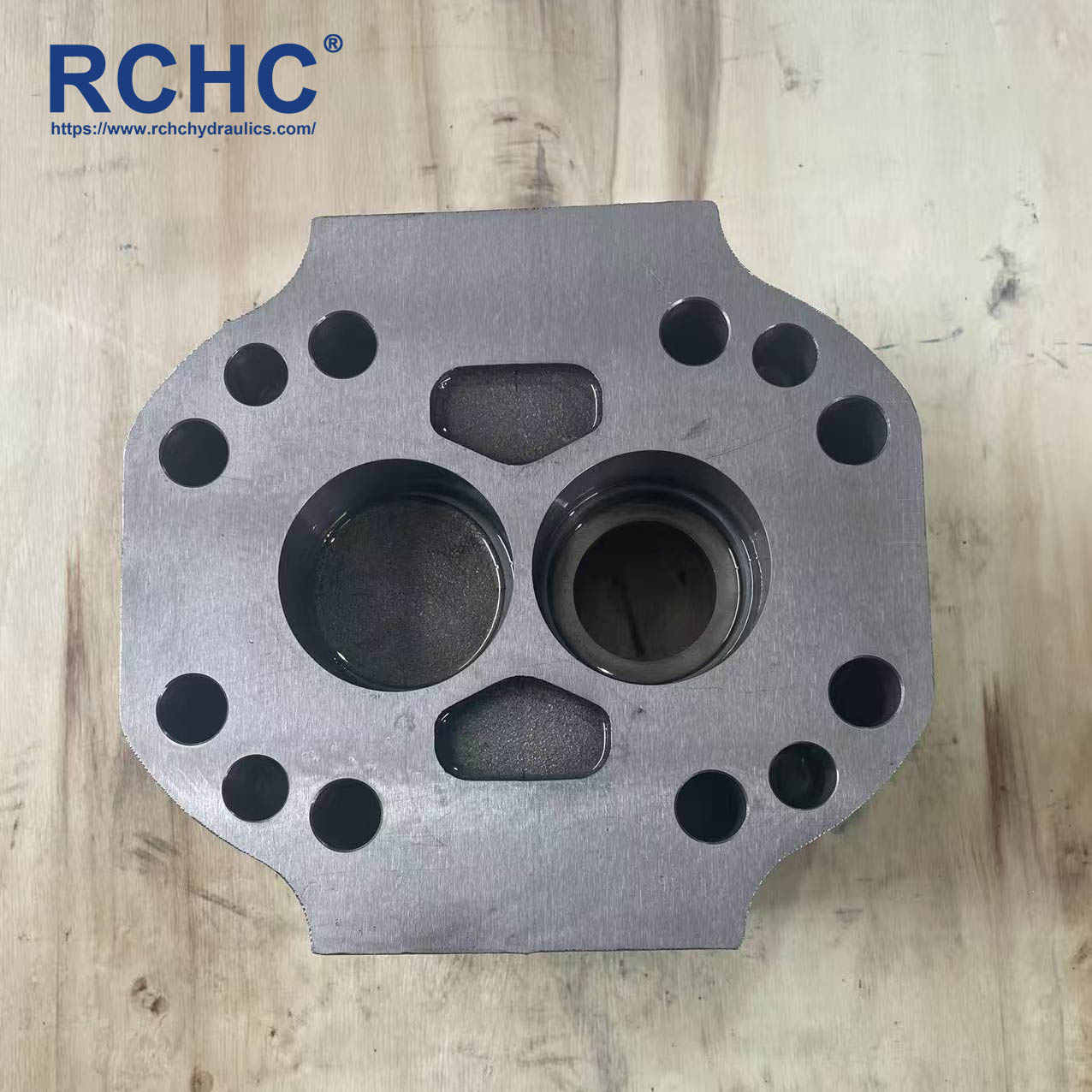

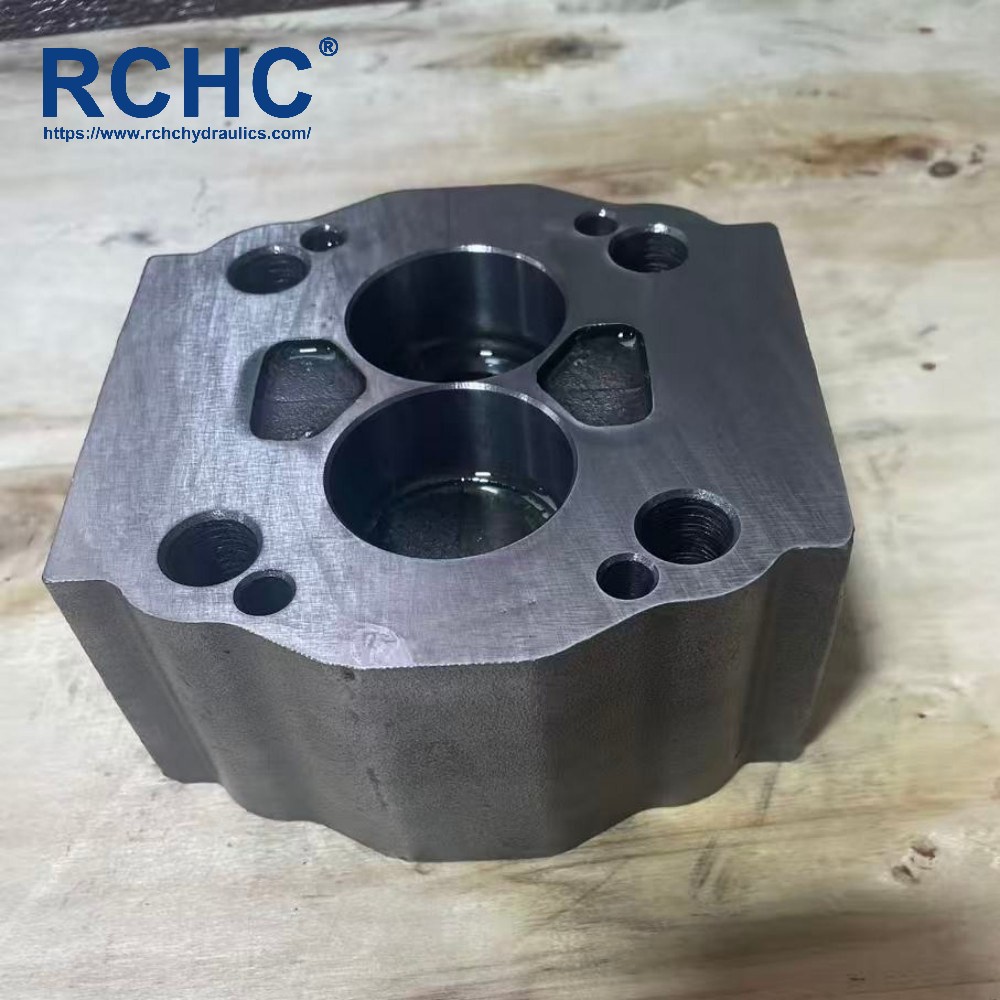

PUMP BEARING CARRIER Parker Hydraulic gear Pump Parts

Manufactured strictly by RCHC to match OEM dimensional standards, this pump bearing carrier is fully interchangeable with all Parker PGP series hydraulic gear pumps, including PGP030, PGP031, PGP050, PGP051, PGP075 and PGP076 single pumps and piggyback tandem pump combinations. As the middle core connecting component between the shaft end cover, pump housing and port end cover, it carries mounting positions for needle roller bearings, thrust plates, three-lobe pocket seals and anti-extrusion retaining rings, playing an irreplaceable role in positioning gears, maintaining clearance and supporting rotary operation.

RCHC adopts high-density cast iron as raw material with precise CNC finishing for all inner holes, mounting steps and oil flow channels. Every bearing carrier undergoes dimensional inspection to guarantee consistent concentricity, flatness and aperture tolerance. Accurate machining keeps gear radial and axial clearance stable, effectively limiting internal leakage, lowering hydraulic pressure fluctuation and reducing running vibration and noise. Its built-in oil passage ensures smooth hydraulic oil circulation to continuously lubricate bearings and gear meshing surfaces, avoiding dry friction and premature component wear.

This carrier fits standard short shafts and Continental Type 7 long shafts of PGP pumps. RCHC provides long-term stable bulk supply, 12-month warranty and full compatibility with overhaul kits. Widely applied to dump trucks, agricultural tractors, loaders and sanitation machinery, our aftermarket bearing carrier helps repair shops and distributors cut procurement costs while keeping pump long-term working reliability.

PGP020/021
20   MOTOR BEARING CARRIER  BLANK	308-7300-100
20   PUMP BEARING CARRIER  WITH COMMON PASSAGE	308-7363-100
PGP030/031
31 MOTOR BEARING CARRIER BLANK	312-7740-100
31 PUMP BEARING CARRIER WITH COMMON PASSAGE	312-7723-100
PGP050/051
51  MOTOR  BEARING  CARRIER  BLANK	313-7740-100
51  PUMP  BEARING  CARRIER  WITH  COMMON  PASSAGE	313-7723-100
PGP075/076
76  MOTOR  BEARING  CARRIER  BLANK	316-7740-100
76  PUMP  BEARING  CARRIER  WITH  COMMON  PASSAGE	316-7723-100
PGP315
315  BEARING  CARRIER  1  OUTLET  WITHOUT  BUSHING	326-7100-100
315  BEARING  CARRIER  1  OUTLET  WITH  BUSHING	326-7600-100
315  BEARING  CARRIER  2  OUTLET  WITHOUT  BUSHING	326-7300-100
315  BEARING  CARRIER  2  OUTLET  WITH  BUSHING	326-7800-100
PGP330
330 BEARING CARRIER  BLANK  WITHOUT  BUSHING	324-7200-100
330 BEARING CARRIER  BLANK  WITH  BUSHING	324-7700-100
330 BEARING CARRIER 1 OUTLET WITHOUT BUSHING	324-7100-100
330 BEARING CARRIER 1 OUTLET WITH BUSHING	324-7600-100
330 BEARING CARRIER 2 OUTLET  WITHOUT  BUSHING	324-7300-100
330 BEARING CARRIER 2 OUTLET WITH BUSHING	324-7800-100
330/315  BEARING  CARRIER  CW  WITHOUT  BUSHING	324-3050-100
330/315  BEARING  CARRIER CW WITH BUSHING	324-3150-100
330/315  BEARING  CARRIER  CCW  WITHOUT  BUSHING	324-3060-100
330/315  BEARING  CARRIER  CCW  WITH  BUSHING	324-3160-100
PGP350
350 BEARING CARRIER BLANK WITHOUT BUSHING	323-7200-100
350 BEARING CARRIER BLANK WITH BUSHING	323-7700-100
350 BEARING CARRIER 1 OUTLET WITHOUT BUSHING	323-7100-100
350 BEARING CARRIER 1 OUTLET WITH BUSHING	323-7600-100
350 BEARING CARRIER 2 OUTLET WITHOUT BUSHING	323-7300-100
350 BEARING CARRIER 2 OUTLET WITH BUSHING	323-7800-100
350/315 BEARING CARRIER CW WITHOUT BUSHING	323-3050-100
350/315 BEARING CARRIER CW WITH BUSHING	323-3150-100
350/315 BEARING CARRIER CCW WITHOUT BUSHING	323-3060-100
350/315 BEARING CARRIER CCW WITH BUSHING	323-3160-100
PGP365
365 BEARING CARRIER 1 OUTLET WITHOUT BUSHING	322-7100-100
365 BEARING CARRIER 1 OUTLET WITH BUSHING	322-7600-100
365 BEARING CARRIER 2 OUTLET WITHOUT BUSHING	322-7300-100
365 BEARING CARRIER 2 OUTLET WITH BUSHING	322-7800-100
365 MOTOR BEARING CARRIER BLANK WITHOUT BUSHING	322-7200-100
365 MOTOR BEARING CARRIER BLANK WITH BUSHING	322-7700-100
365/330 BEARING CARRIER CW WITHOUT BUSHING	322-3050-100
365/330 BEARING CARRIER CW WITH BUSHING	322-3150-100
365/330 BEARING CARRIER CCW WITHOUT BUSHING	322-3060-100
365/330 BEARING CARRIER CCW WITH BUSHING	322-3160-100
