RHP3
RHP3
RHP3
RHP3
RHP3

RHP3

Hydraulic Gear motor PGP Hydraulic Gear Pump 0
  • price $50~$610
  • Pump type Heavy duty, cast iron, external meshing gear
  • Fluid viscosity20~100m㎡/s
  • speed 600-3000rpm
  • Import pressure-0.2-2bar
  • Fluid temperature-15℃~+80℃
  • ISO ISO 4406 C1.16/13
  • Multiple pumps twin pumps and triple pumps are available
MESSAGE
Product
Parameter
Application
CONTACT US

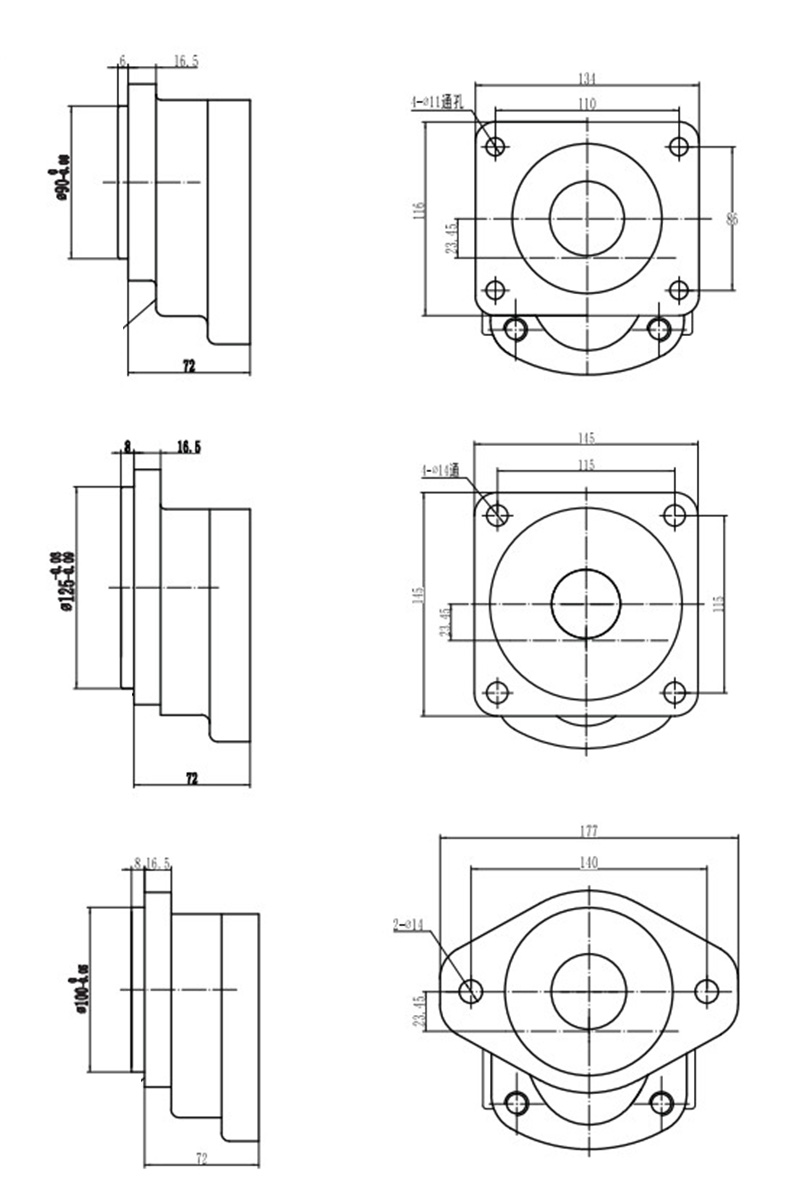

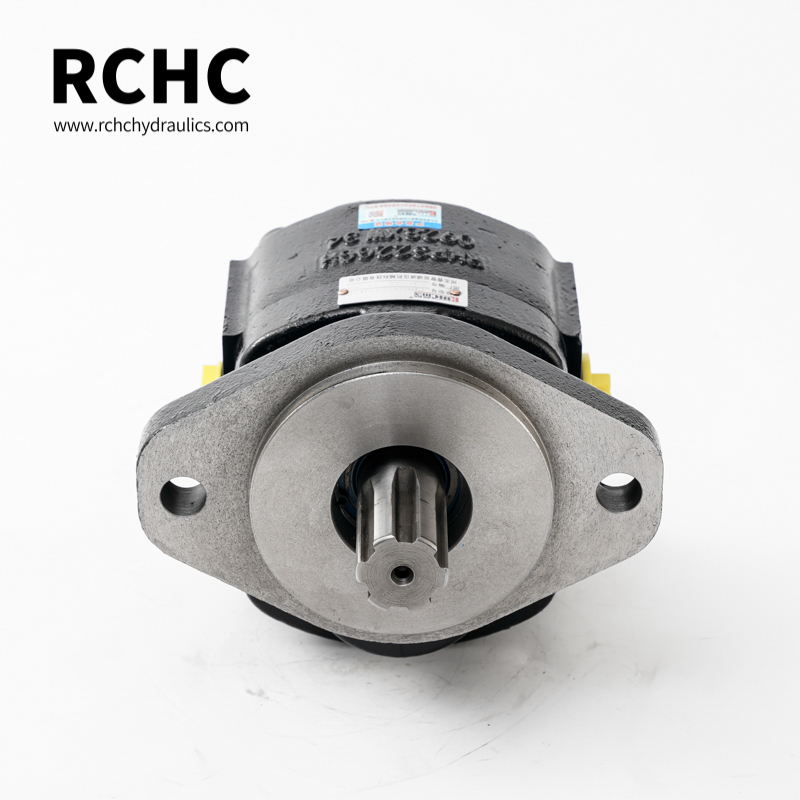

RHP3（images 1）
RHP3（images 2）

Message

*
*

Pump displacementcm*/rev17253442526573 84 100
continuous pressurebar250250250250250210210 210 210
intermittent pressurebar280280280280280250250250250
Minimum speed(maximum outlet pressure)rpm600600600600600600600600600
Maximum speed(inlet and maximum outlet pressure)rpm3000 3000 3000 3000 3000 3000 3000 3000 3000
Size “L”mm22.52833384452576474

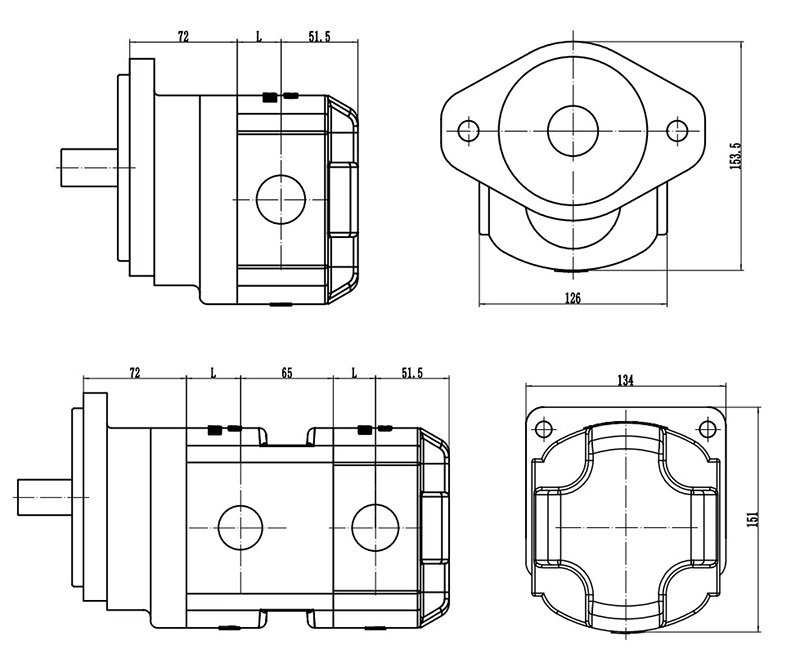

RHP3（images 3）
