RHP2 Triple Pump
RHP2 Triple Pump
RHP2 Triple Pump
RHP2 Triple Pump
RHP2 Triple Pump

RHP2 Triple Pump

Hydraulic Drive Assemblies PRODUCTS 0
  • price $50~$610
  • Pump type Heavy duty, cast iron, external meshing gear
  • Fluid viscosity20~100m㎡/s
  • speed 600-3000rpm
  • Import pressure-0.2-2bar
  • Fluid temperature-15℃~+80℃
  • ISO ISO 4406 C1.16/13
MESSAGE
Product
Parameter
Application
CONTACT US

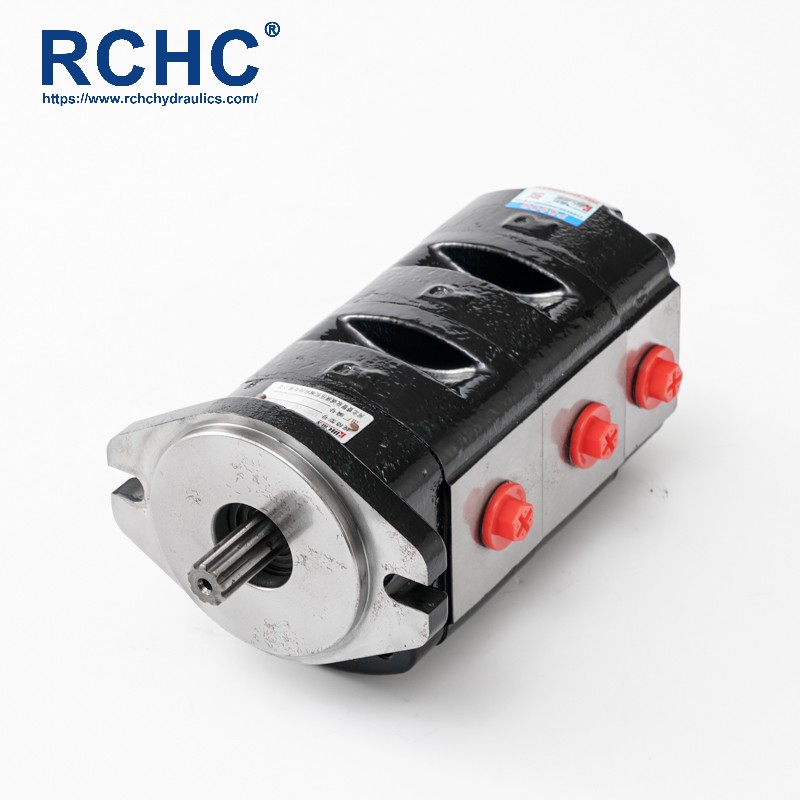

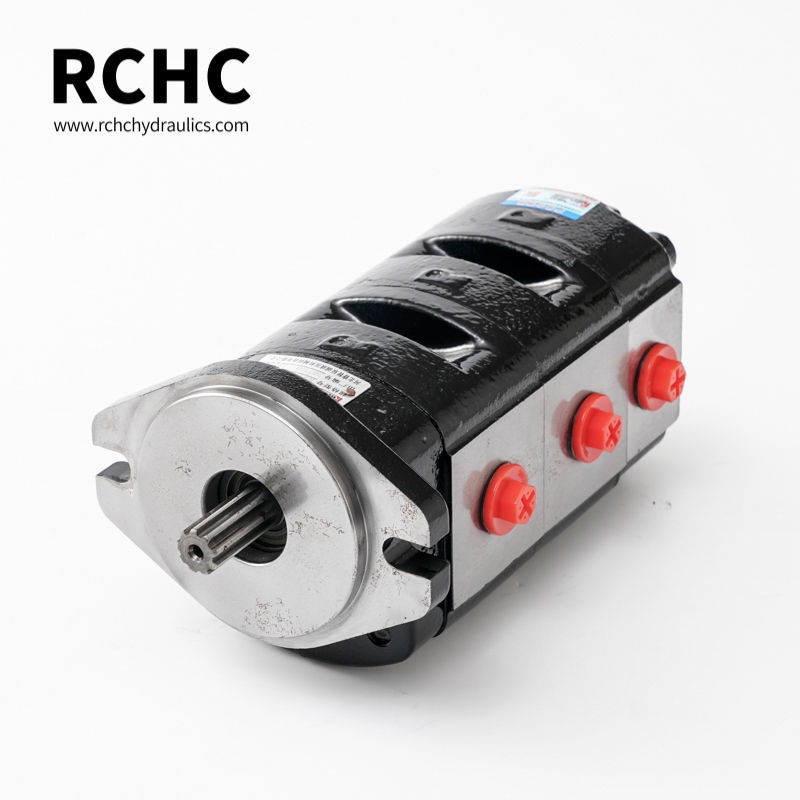

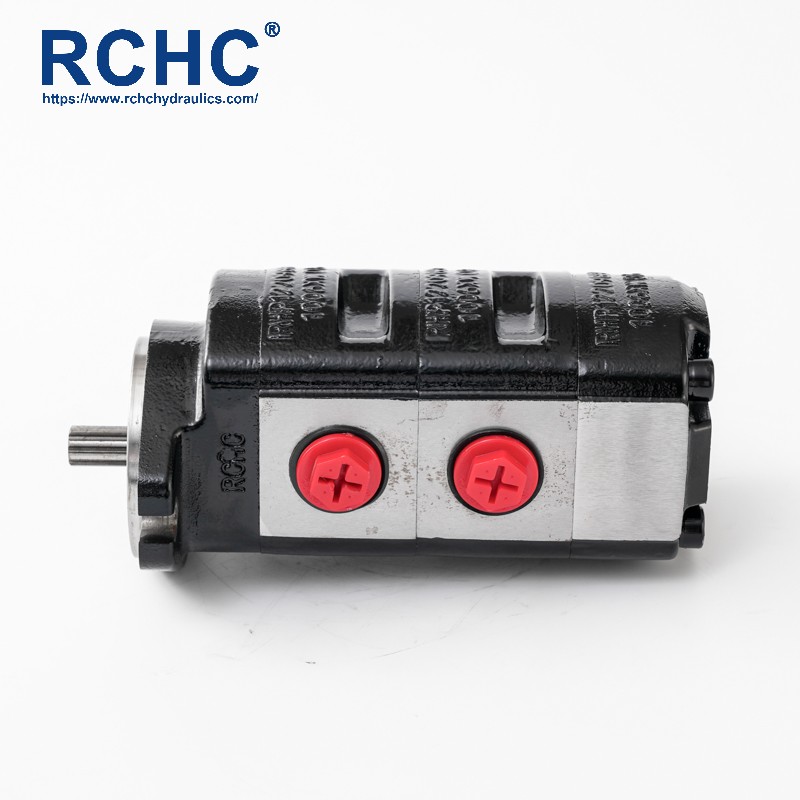

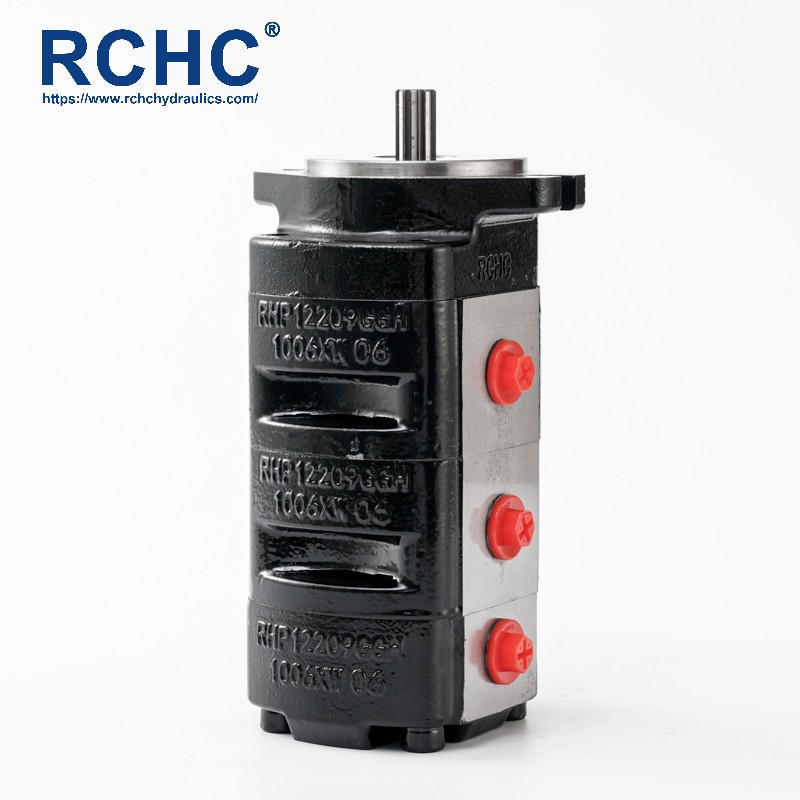

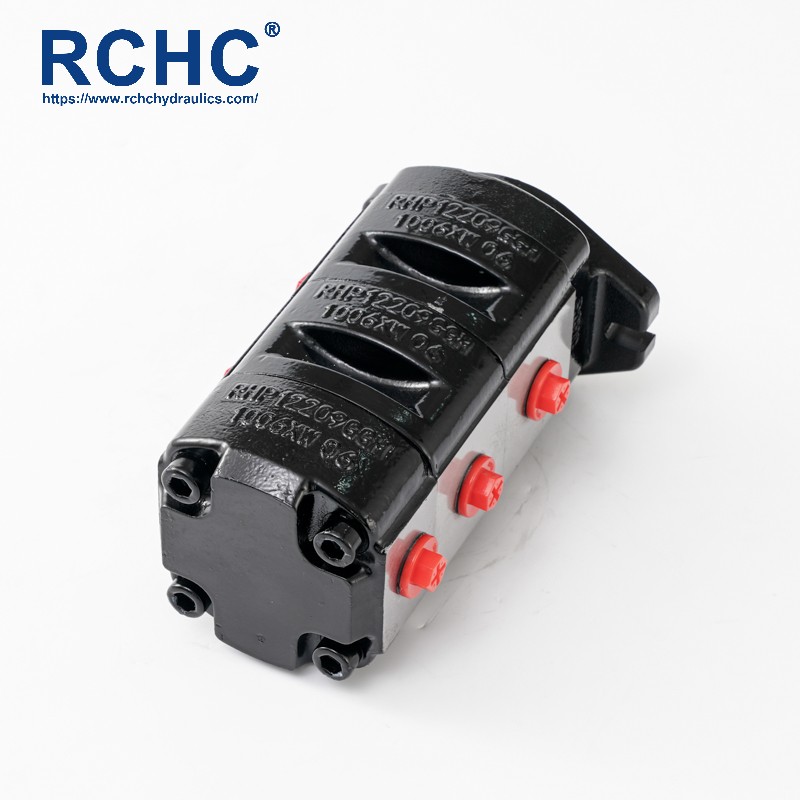

RHP2 Triple Pump（images 1）

Message

*
*

Pump displacementcm*/rev161921232629 33 36 37 41 44 46 50 52
continuous pressurebar280280280280280 280 280 250250 220 210 210 210210
intermittent pressurebar300300300300300300300300280250230220210 210
Minimum speed(maximum outlet pressure)rpm600600600600600600600600600600600600600600
Maximum speed(inlet and maximum outlet pressure)rpm3000 3000 3000 3000 3000 3000 3000300030003000 300030003000 3000
Size “L”mm30.433.735.938.141.4 44.749.1 52.453.5 57.9 61.2 63.4 67.8 70
