19/05/2024Hydraulic Gear motor PGP Hydraulic Gear Pump 0

price $50~$590
Pump type Heavy duty, cast iron, external meshing gear
Fluid viscosity20~100m㎡/s
speed 600-3000rpm
Import pressure-0.2-2bar
Fluid temperature-15℃~+80℃
ISO ISO 4406 C1.16/13
Multiple pumps twin pumps and triple pumps are available

Product

Parameter

Application

CONTACT US

R9（images 1）

R9（images 2）

Message

Pump displacement	cm*/rev	05	10	16	20	25
continuous pressure	bar	200	200	200	200	160
intermittent pressure	bar	240	240	240	240	200
Minimum speed(maximum outlet pressure)	rpm	600	600	600	600	600
Maximum speed(inlet and maximum outlet pressure)	rpm	3000	3000	3000	3000	3000
Motor theoretical output torque（continuous working pressure)	N.M	16.6	31.8	50.6	63.4	63.7

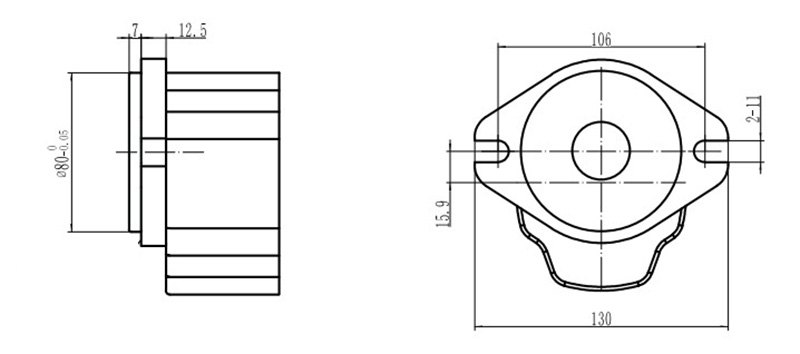

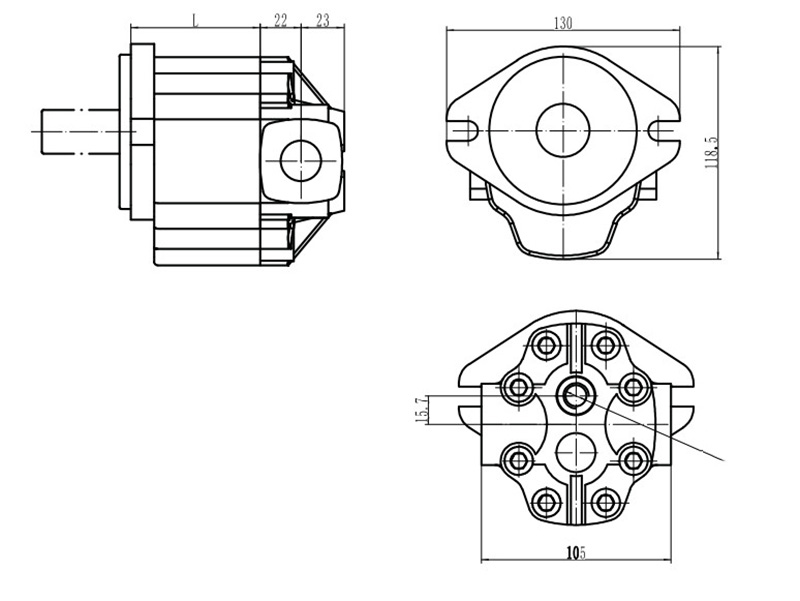

Size “L”	mm	66.4	74.3	82.2	90.1	98

R9（images 3）
