PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump

Parker PGP640 7049521126 Hydraulic Gear Pump

12/05/2026Hydraulic Gear Pump PGP Hydraulic Gear Pump PRODUCTS 48840

Pump typeDouble Pump
Shaftsplined shaft
FlangeSAE B 4 Hole
RotationClockwise, Counterclockwise
ApplicationConstruction Machinery | Agricultural Machinery
price $260~$650

hydraulic oil pump Parker PGP

MESSAGE

Selection Catalog

Parameter

Product

Application

Use for:

Hyster:1625615

Atlas, Case, JCB, Volvo Excavators, Loaders

RCHC’s RPGP640 series fixed/positive displacement gear pumps offer the most volumetrically efficient and power dense solution due their interlocking, two-piece cast iron design, making the 600 series ideal for engineered mobile equipment solutions demanding energy efficient, high performing hydraulic systems. The 600 series is a type of cast iron pump widely used in the most demanding applications.Features/Benefits:Two-piece, interlocking body construction for high efficiency and high pressur, Cast iron pumping sections for durability,Journal bushings for long life,Pressure balanced thrust plates for high efficiency,Multiple sections available.Sizes from 30 to 80cc, Operating pressures up to 275 bar (4,000 psi)，Speeds up to 3,000 rpm， CW, CCW, and Bi-rotational pumps available， SAE shafts, flanges and porting available.

Product Features	Description
Pump Type	Heavy-duty, cast iron, external gear
Mounting	SAE, rectangular, thru-bolt standard specials on request.
Ports	SAE and metric split flanges and others
Shaft Style	SAE splined,keyed,tapered,cylindrical tang drive,specials on request
Speed	500 – 3500 rpm,see Technical Data
Theor. displacement	See Specifications
Drive	Drive direct with flexible coupling is recommended.
Axial / Radial load	Units subject to axial or radial loads must be specified with an outboard bearing.
Inlet pressure	Operating range 0.8 to 2 bar abs. Min. inlet pressure 0.5 bar abs. Short time without load. Consultation is recommended.
Outlet pressure	See Specifications
Hydraulic fluids	Hydraulic oil HLP,DIN 51524-2
Fluid viscocity	See Nomograph for Pipe Velocity
Fluid temperature	Range of operating temperature -15 to +80 °C. Max. permissible operating pressure dependent on fluid temperature. Temperature for cold start -20 to -15 °C at speed ≤ 1500 rpm. Max. permissible operating pressure dependent on fluid temperature.
Fluid viscosity	Range of operating viscosity 8 to 1000 mm2/s. Max. permissible operating pressure dependent on viscosity. Viscosity range for cold start 1000 to 2000 mm2/s at operating pressure p≤10 bar and speed n ≤1500 rpm.
Range of ambient temperature	-40 °C to +70 °C
Filtration	According to ISO 4406 Cl. 19/17/13
Direction of rotation (looking at the drive shaft)	CW, CCW, Bi-Rotational
Multiple pump assemblies	Available in two or three section configuration. Max. shaft load must be conform to the limitations shown in the shaft loading rating table in this catalogue. Max. load is determined by adding the torque values for each pumping section that will be simultaneously loaded.
Separate orcommon inlet capability	Separate inlet configuration: Each gear housing has individual inlet and outlet ports. Common inlet configuration: Two gear sets share a common inlet.

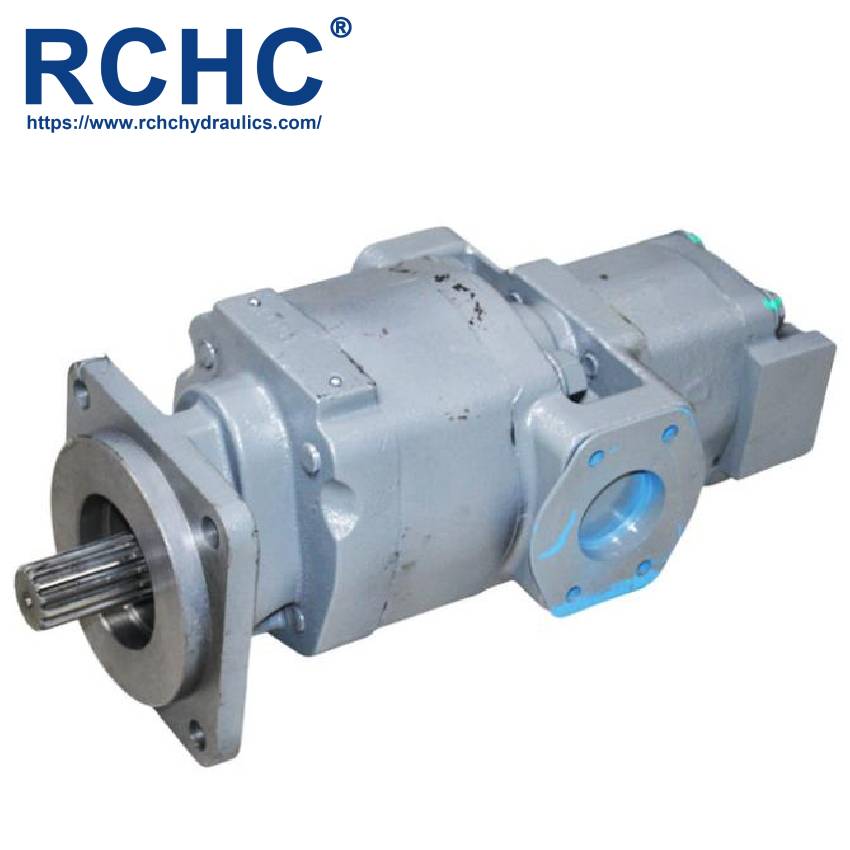

Parker PGP640 7049521126 Hydraulic Gear Pump（images 1）

Other Products

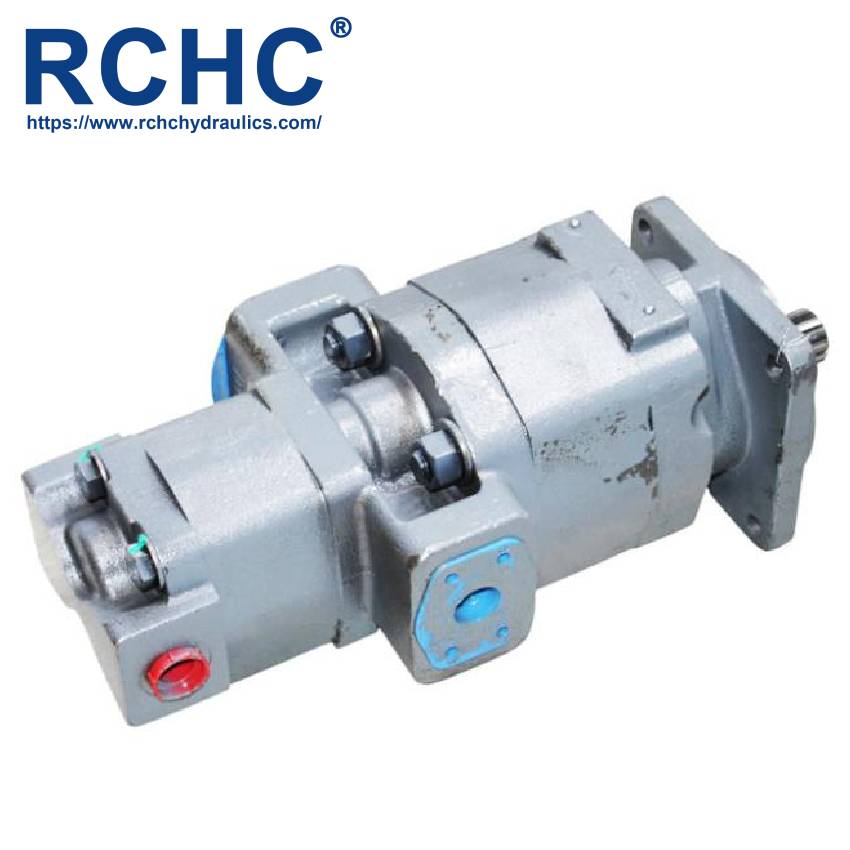

Parker PGP640 7049521126 Hydraulic Gear Pump（images 2）

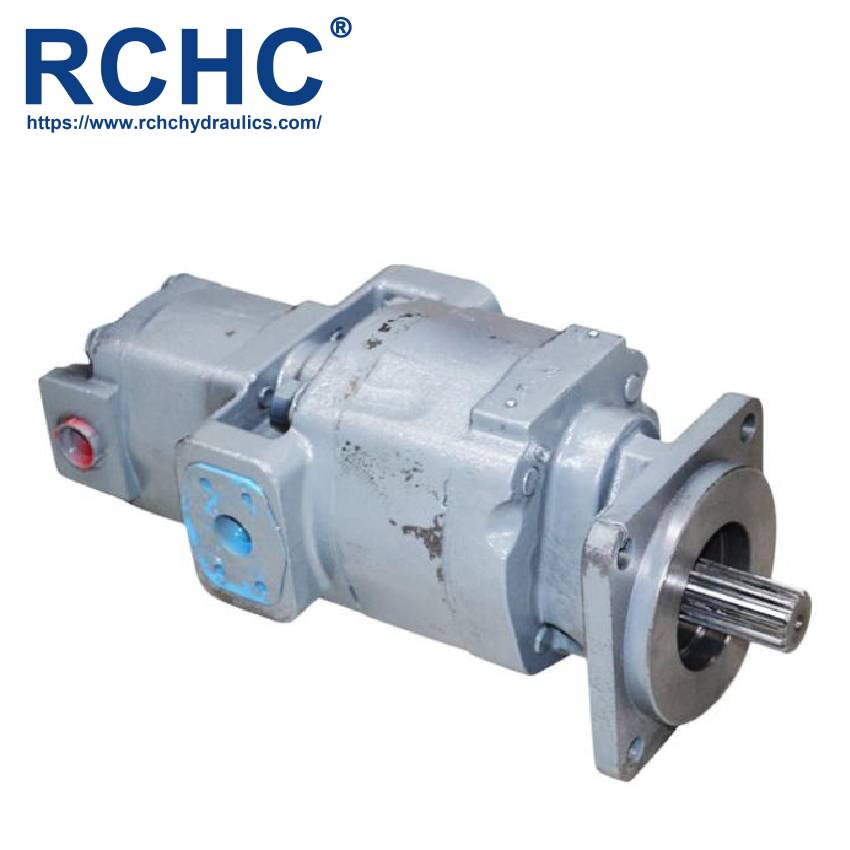

Parker PGP640 7049521126 Hydraulic Gear Pump（images 3）

Parker PGP640 7049521126 Hydraulic Gear Pump（images 4）

Parker PGP640 7049521126 Hydraulic Gear Pump（images 5）
