PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump
PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump
PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump
PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump
PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump

Parker PGM511 3349211148 Hydraulic Gear Motor

Hydraulic Gear motor Hydraulic Gear Pump PGP Hydraulic Gear Pump PRODUCTS 48840
  • Shaftsplined shaft
  • Power Source Hydraulic
  • FlangeSAE B 2 Hole
  • RotationClockwise, Counterclockwise
  • ApplicationConstruction Machinery | Agricultural Machinery
  • price $110~$250
hydraulic gear motorParkerPGP
MESSAGE
Selection Catalog
Parameter
Product
Application
CONTACT US

PGM511C0060CK4H2HE3E3RDAMB1

RCHC’s Aluminum Pump RPGP511 Series fixed displacement gear pump offers high performance and high power density due to its aluminum construction, making it an ideal selection for the Aerial, Agriculture, Construction, Forestry, Material Handling, and Turf Equipment markets where durability and efficiency are important.Features & Benefits: Three-piece construction for distribution flexibility, Aluminum pumping sections for light weight,Journal bushings for long life, Pressure balanced thrust blocks for high efficiency.Sizes from 4 to 33cc,Operating pressures up to 250 bar,Speeds up to 3,500 rpm,Rotation CW and CCW.

Product FeaturesDescription
Pump TypePressure balanced, aluminum, external gear
MountingSAE, rectangular, thru-bolt standard specials on request.
PortsSAE and metric split flanges and others
Shaft StyleSAE splined,keyed,tapered,cylindrical tang drive,specials on request
Maximum Speed500 – 3500 rpm, see Specifcations
Theor. displacementSee Specifications
DriveDrive direct with flexible coupling is recommended.
Axial / Radial loadConsult with product service for allowable loading.
Inlet pressureOperating range 0.8 to 2 bar abs.
Min.inlet pressure 0.5 bar abs.
Short time without load.Maximum suggested inlet fow velocity for pumps: 2.5 mps.
Consultation is recommended.
Outlet pressureSee Specifications
Hydraulic fluidsHydraulic oil HLP,DIN 51524-2
Fluid temperatureFor NBR seals, range of operating temperature -40° to +80°C.
For FKM seals, range of operating temperature -20° to +105°C.
Max.permissible operating pressure dependent on fuid temperature.
Temperature for cold start -20° to -15°C at speed ≤1500 rpm.
Max.permissible operating pressure dependent on fuid temperature.
Fluid viscosityRange of operating viscosity 8 to 1000 mm²/s.Max.permissible operating pressure dependent on viscosity.
Viscosity range for cold start 1000 to 2000 mm²/s at operating pressure p ≤10 bar and speed n ≤1500 rpm.
FiltrationAccording to ISO 4406 Cl. 19/17/13
Direction of rotation
(looking at the drive shaft)		Clockwise, counter-clockwise.
Attention! Drive pump only in indicated direction of rotation.
Multiple pump  assemblies• Available in two or three sections,limitations shown in the shaft loading rating table in this catalog.
• Max.load is determined by adding the torque values for each pumping section that will be simultaneously loaded.
Separate orcommon inlet
capability		Separate inlet configuration:
Each gear housing has individual inlet and outlet ports.
Common inlet configuration:
Two gear sets share a common inlet.

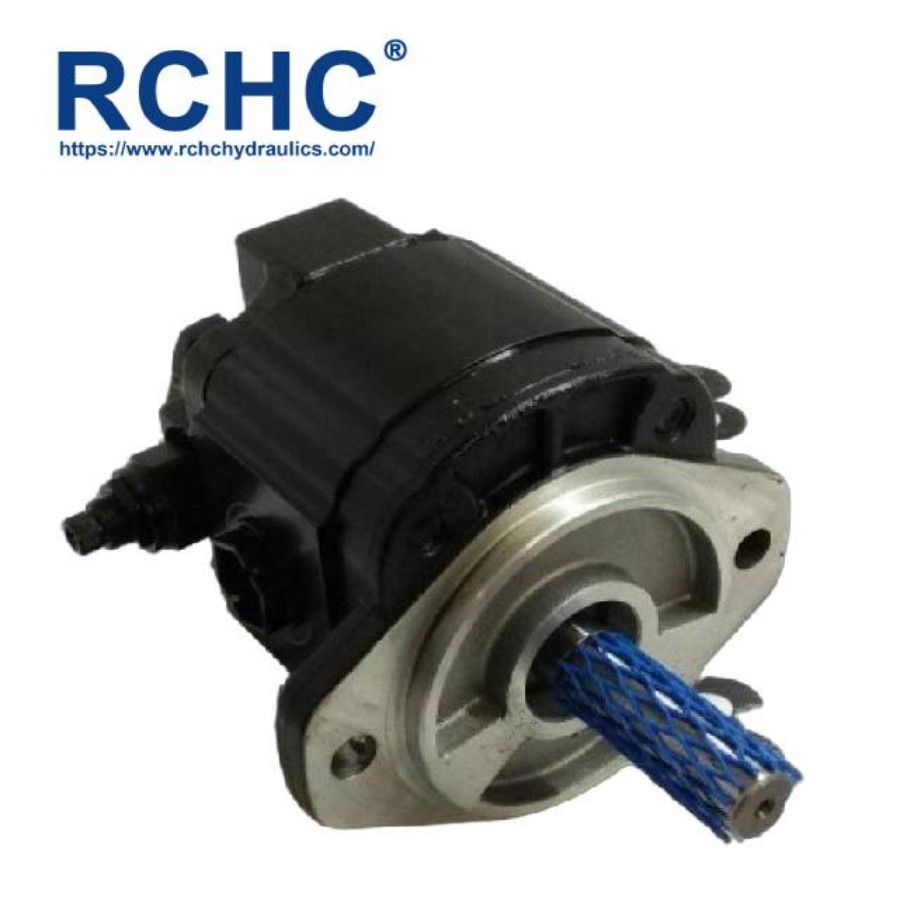

Parker PGM511 3349211148 Hydraulic Gear Motor（images 1）

Other Products

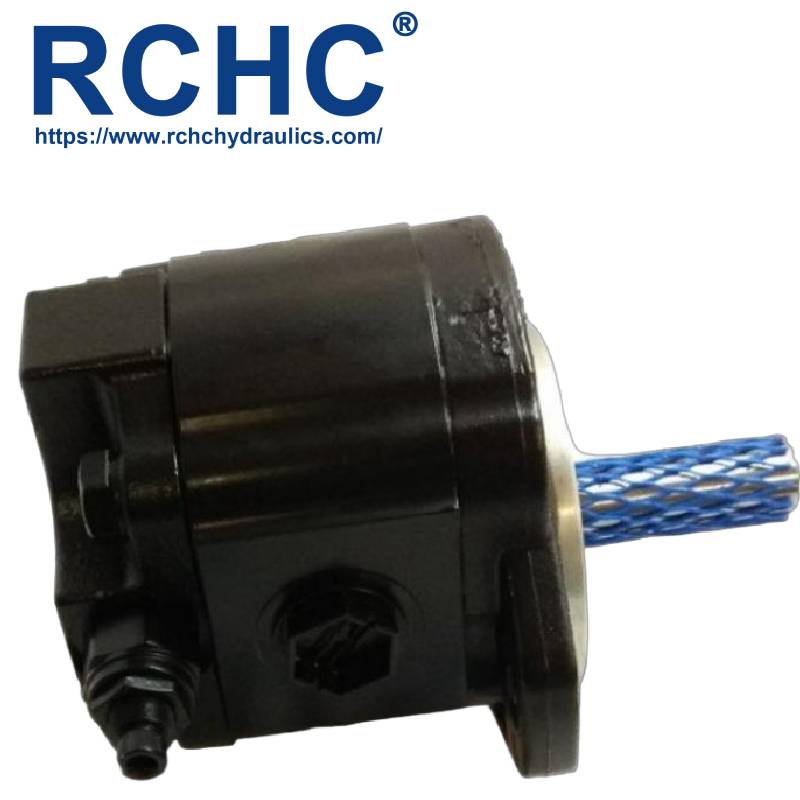

Parker PGM511 3349211148 Hydraulic Gear Motor（images 2）

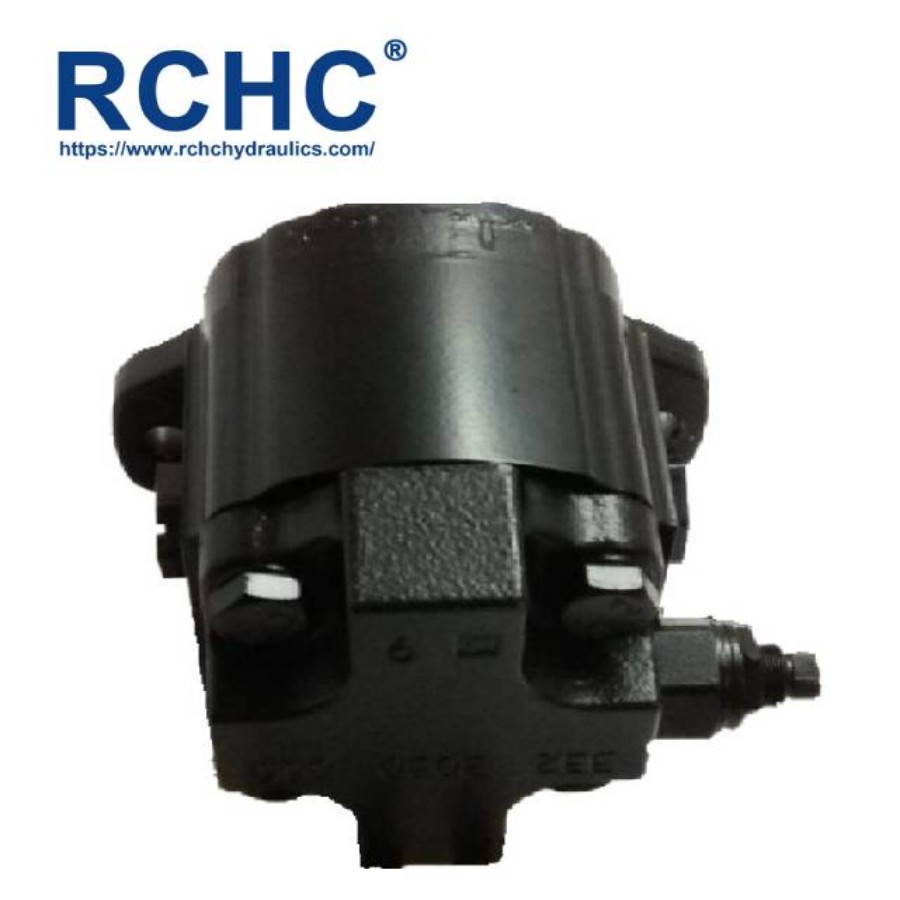

Parker PGM511 3349211148 Hydraulic Gear Motor（images 3）
Parker PGM511 3349211148 Hydraulic Gear Motor（images 4）
Parker PGM511 3349211148 Hydraulic Gear Motor（images 5）

Company Profile

Ruichen Hydraulic Machinery Manufacturing Co., Ltd., established in 2000, is a global provider of high-quality hydraulic solutions. Located in Hebei Province, China, our 55,000 m² factory employs over 300 staff, including 15 engineers and 5 senior engineers. We specialize in cast iron gear pumps, gear motors, and hydraulic control valves, widely used in construction machinery, agricultural equipment, mining, and industrial applications.

Parker PGM511 3349211148 Hydraulic Gear Motor（images 6）

Quality Certificate

Parker PGM511 3349211148 Hydraulic Gear Motor（images 7）

Message

*
*

Parker PGM511 3349211148 Hydraulic Gear Motor（images 8）

Message

*
*

PGP5113911832780 3349121630 3349116606 3349116756
PGP511112392 3349116484 3349112992 3349111065
PGP5113349112591 3349111823 3349122395 3349116553
PGP5113349121291 3349116332 3349121812 3349121901
PGP5113349112766 3349112645 3349117028 3349121905
PGP5113349541002 3349116294 3349116609 3349121904
PGP5113349111585 3349112096 3349116612 3349116417
PGP5113349121127 3349112113 3349117016 3349113035
PGP5113349121400 3349112920 3349116604 3349116755
PGP5113349116218 3349116567 3349117019 3349116179
PGP5113349111117 3349111611 3349115063 3349121907
PGP5113349111262 3349112160 3349111312 3349219085
PGP5113349112127 3349112277 3349122422 3349219411
PGP51187896 3349121310 3349112973 3349219173
PGP5113349112816 3349116035 3349121746 3349219254
PGP5113349111323 3349116036 3349116506 3349219329
PGP5113349110065 3349112605 3349121737 3349219201
PGP5113349121486 3349112612 3349112580 3349219362
PGP5113349111324 3349121386 3349112334 3349219253
PGP5113349111376 3349112733 3349116411 3349219318
PGP5113349116034 3349112734 3349112892 3349219256
PGP5113349112751 3349121512 3349116456
PGP5113349116282 3349111510 3349112702
PGP5113349111447 3349121765 3349111168
PGP5113349111586 3349112845 3349112358
PGP5113349112174 3349131143 3349116522
PGP5113349121211 3349111572 3349121478
PGP5113349112589 3349111602 3349112824
PGP5113349131104 3349112171 3349116300
PGP5113349112972 3349121299 3349111069
PGP5113349111441 3349112280 3349112170
PGP5113349111789 3349111722 3349125032
PGP5113349116577 3349116009 3349121590
PGP5113349111546 3349112581 3349121872
PGP5113349120003 3349521094 3349121793
PGP5113349131083 3349112188 3349121679
PGP5113349112805 3349112621 3349116452
PGP5113349110021 3349112399 3349111408
PGP5113349111609 3349116623 3349112874
PGP5113349112079 3349112023 3349112281
PGP5113349116280 3349112249 3349116004
PGP5113349116520 3349112560 3349116482
PGP5113349521074 3349117027 3349116710
PGP5113349111943 3349131188 3349131206
PGP5113349121636 3349117032 3349116763
PGP5113349111230 3349117005 3349117126
PGP5113349121766 3349116625 3349116765
PGP5113349116404 3349121803 3349117127
PGP5113349116429 3349122398 3349122469
PGP5113349121629 3349116618 3349110248
