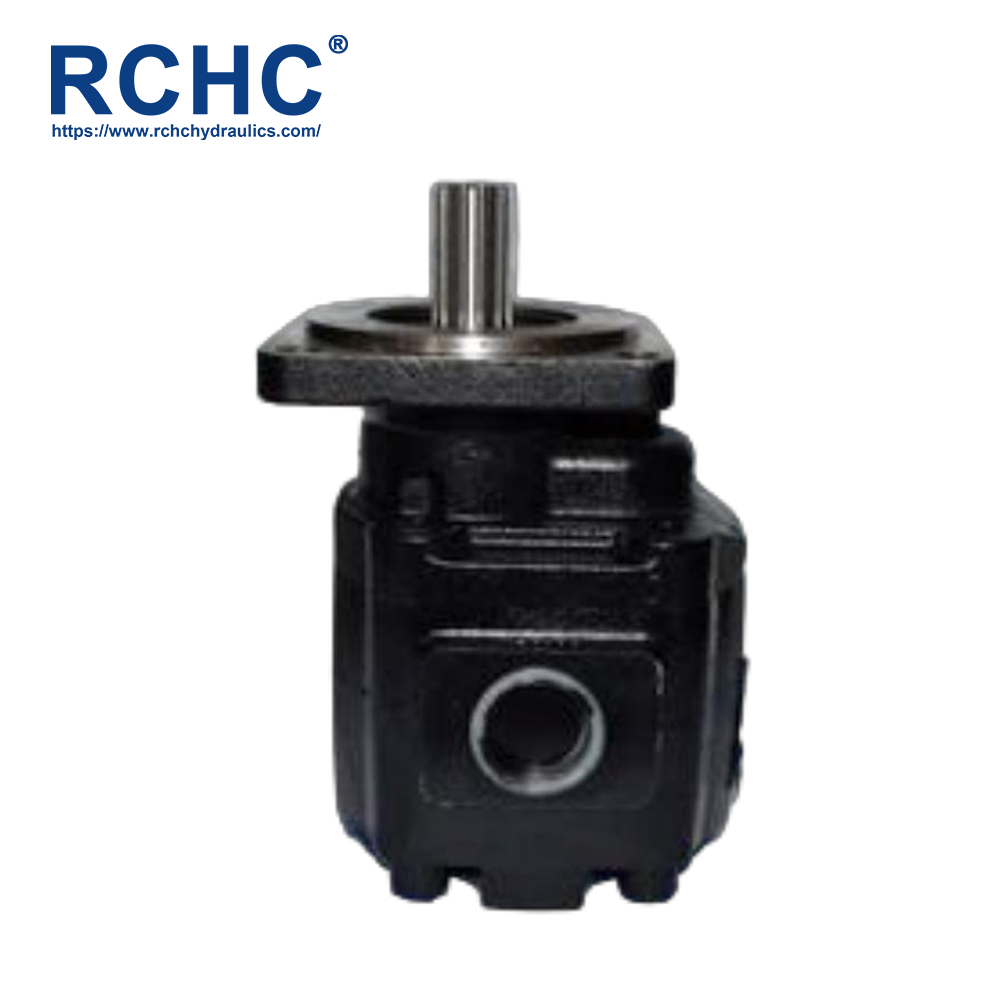

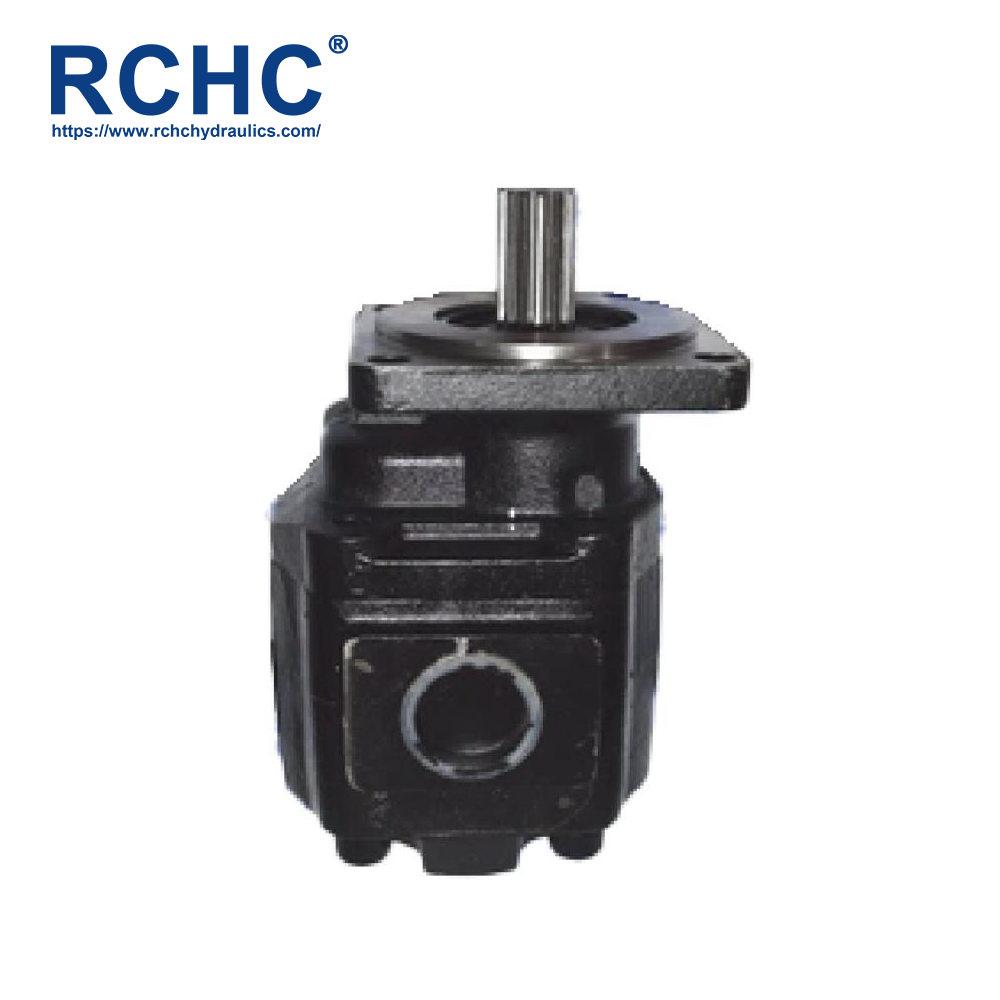

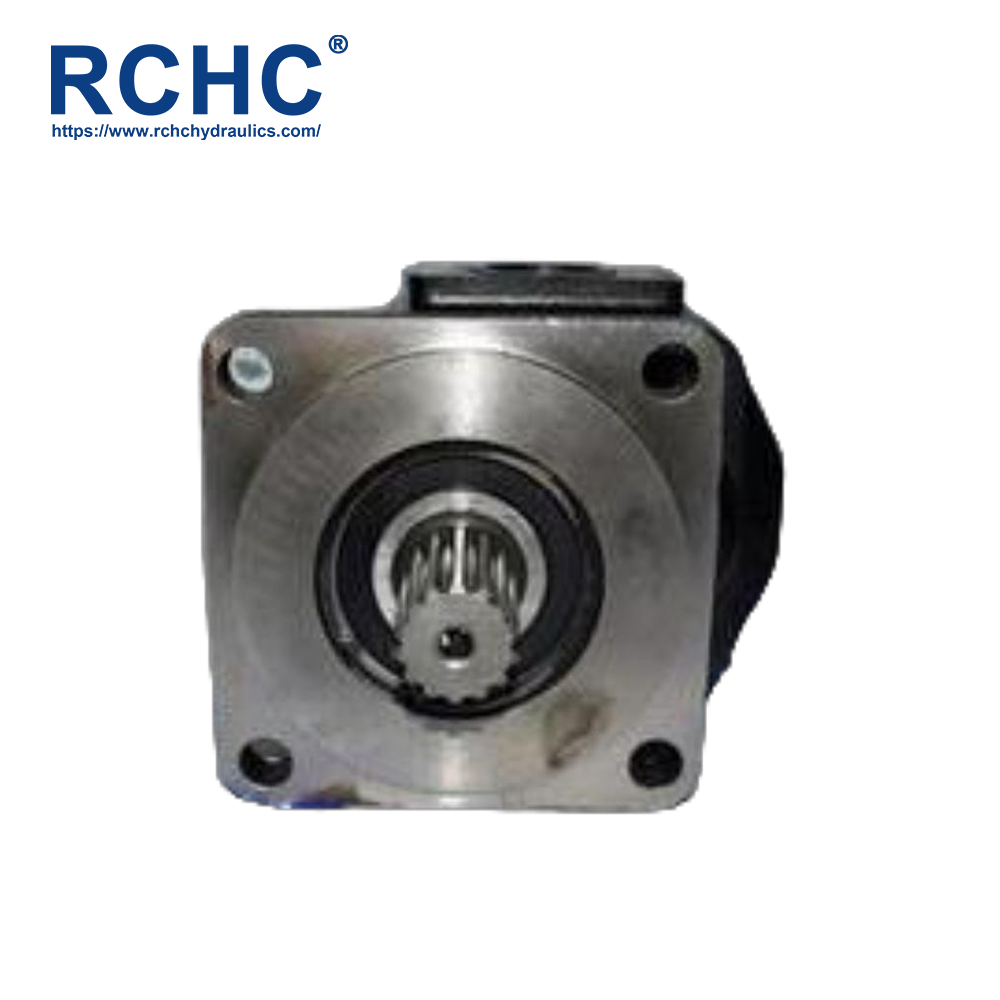

Parker PGP051 3139115017 Hydraulic Gear Pump

PRODUCT INTRODUCTION
RCHC’s RPGP50/51 series fixed/positive displacement commercial gear pumps offer high durability & resistance to oil contamination due to their cast iron, roller bearing construction making them an ideal selection for the Vocational Truck, Winch, and Oil & Gas markets. They are available as single, or multi-section pumps with an integral valve. Flow range to 63 gpm (238.5 lpm) per section
• Displacements from 1.26 to 6.38 cir (20.9 to 104.5 cc/rev)， Operating pressures up to 200 bar (3,000 psi)，Speeds up to 2,400 rpm，Volumetric efficiencies up to 95%，CW, CCW, and Bi-rotational pumps available，SAE and SI shafts, flanges and porting available。

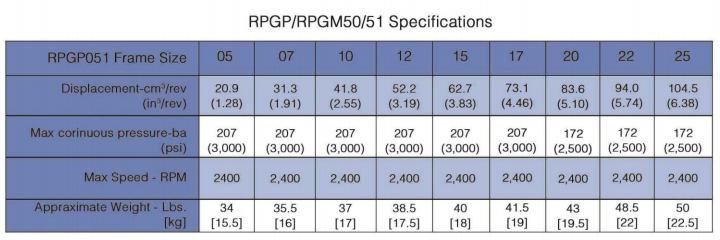

Product Features	Description
Pump Type	Cast iron, Fixed
Mounting	SAE, DIN
Ports	SAE, Split Flange, NPT
Shaft Style	SAE, DIN
Pump Speed	900 to 2400 RPM
Motor Speed	800 to 2000 RPM
Maximum Displ.	6.4 in3/rev
Maximum Operating Pressure	3000 PSI
Fluids	Standard Hydraulic Fluid, Phosphate Ester
Fluid temperature	Range of Operating Temperature -20 to 80°C (0 to 180°F)
Fluid Viscosity	50-7500 SUS
Direction of rotation  (looking at the drive shaft)	CW, CCW, Bi-Rotational
