PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump
PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump
PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump

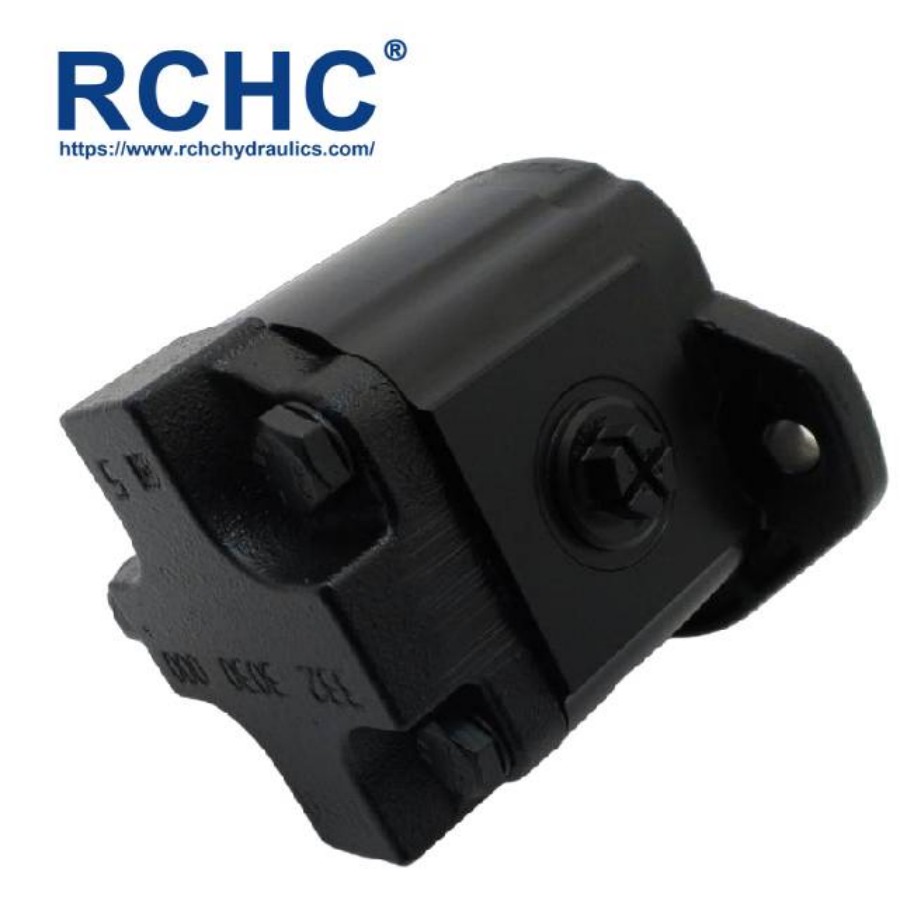

Parker PGM511 3349212097 Hydraulic Gear Motor

Hydraulic Gear motor Hydraulic Gear Pump PGP Hydraulic Gear Pump PRODUCTS 48840
  • ShaftKey shaft
  • Power Source Hydraulic
  • FlangeSAE B 2 Hole
  • RotationClockwise, Counterclockwise
  • ApplicationConstruction Machinery | Agricultural Machinery
  • price $110~$250
hydraulic gear motorParkerPGP
MESSAGE
Selection Catalog
Parameter
Product
Application
CONTACT US

PGM511C0100AL6J2VE3E3RDAZB1

Epiroc / Atlas Copco: 9106161319

RCHC’s Aluminum Pump RPGP511 Series fixed displacement gear pump offers high performance and high power density due to its aluminum construction, making it an ideal selection for the Aerial, Agriculture, Construction, Forestry, Material Handling, and Turf Equipment markets where durability and efficiency are important.Features & Benefits: Three-piece construction for distribution flexibility, Aluminum pumping sections for light weight,Journal bushings for long life, Pressure balanced thrust blocks for high efficiency.Sizes from 4 to 33cc,Operating pressures up to 250 bar,Speeds up to 3,500 rpm,Rotation CW and CCW.

Product FeaturesDescription
Pump TypePressure balanced, aluminum, external gear
MountingSAE, rectangular, thru-bolt standard specials on request.
PortsSAE and metric split flanges and others
Shaft StyleSAE splined,keyed,tapered,cylindrical tang drive,specials on request
Maximum Speed500 – 3500 rpm, see Specifcations
Theor. displacementSee Specifications
DriveDrive direct with flexible coupling is recommended.
Axial / Radial loadConsult with product service for allowable loading.
Inlet pressureOperating range 0.8 to 2 bar abs.
Min.inlet pressure 0.5 bar abs.
Short time without load.Maximum suggested inlet fow velocity for pumps: 2.5 mps.
Consultation is recommended.
Outlet pressureSee Specifications
Hydraulic fluidsHydraulic oil HLP,DIN 51524-2
Fluid temperatureFor NBR seals, range of operating temperature -40° to +80°C.
For FKM seals, range of operating temperature -20° to +105°C.
Max.permissible operating pressure dependent on fuid temperature.
Temperature for cold start -20° to -15°C at speed ≤1500 rpm.
Max.permissible operating pressure dependent on fuid temperature.
Fluid viscosityRange of operating viscosity 8 to 1000 mm²/s.Max.permissible operating pressure dependent on viscosity.
Viscosity range for cold start 1000 to 2000 mm²/s at operating pressure p ≤10 bar and speed n ≤1500 rpm.
FiltrationAccording to ISO 4406 Cl. 19/17/13
Direction of rotation
(looking at the drive shaft)		Clockwise, counter-clockwise.
Attention! Drive pump only in indicated direction of rotation.
Multiple pump  assemblies• Available in two or three sections,limitations shown in the shaft loading rating table in this catalog.
• Max.load is determined by adding the torque values for each pumping section that will be simultaneously loaded.
Separate orcommon inlet
capability		Separate inlet configuration:
Each gear housing has individual inlet and outlet ports.
Common inlet configuration:
Two gear sets share a common inlet.
Parker PGM511 3349212097 Hydraulic Gear Motor（images 1）
