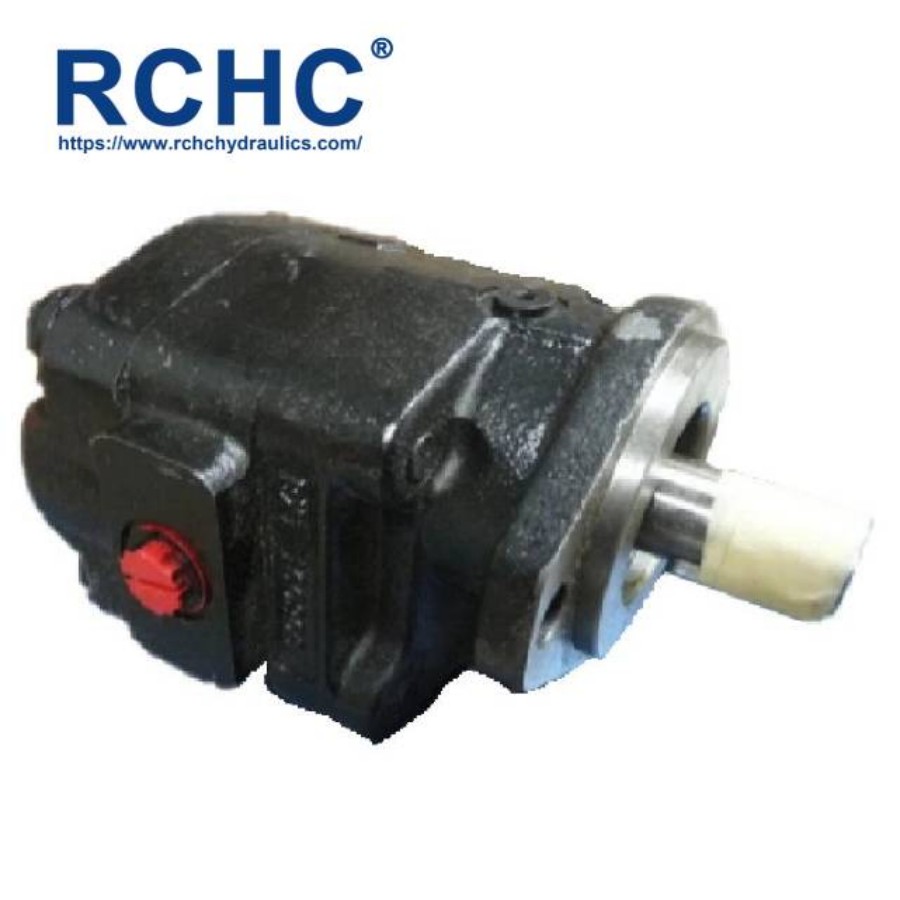

Parker PGM020 3089210053 Hydraulic Gear motor

PRODUCT INTRODUCTION
RCHC’s RPGP020/21 series fixed/positive displacement commercial gear pumps offer high performance, durability & resistance to oil contamination due to their cast iron, roller bearing construction, making them an ideal selection for the Vocational Truck, Winch, and Oil & Gas markets. They are available as single or multi-section pumps.Flow range to 38.4 gpm (145.4 lpm) per section. Displacements from 0.99 to 3.9 cir (16.1to 64.6 cc/rev). Operating pressures up to 207 bar (3,000 psi). Speeds up to 2,400rpm.Volumetric efficiencies up to 95%. CW, CCW, and Bi-rotational pumps available，SAE and SI shafts, flanges and porting available

Product Features	Description
Pump Type	Fixed
Mounting	SAE
Ports	Flange, NPT, ODT
Shaft Style	SAE
Pump Speed	900 to 2400 RPM
Motor Speed	800 to 2000 RPM
Maximum Displ.	3.9 in3/rev
Maximum Operating Pressure	3000 PSI
Fluids	Mineral oil, fre resistant fuids: – water-oil emulsions 60/40, HFB – water-glycol, HFC – phosphate-esters, HFD
Fluid temperature	Range of operating temperature -15 to +80°C (5 to 176° F). Max.permissible operating pressure dependent on fuid temperature. Temperature for cold start -20 to -15°C (-4 to 5° F) at speed ≤ 1500 RPM.
Fluid Viscosity	50-7500 SUS
Direction of rotation  (looking at the drive shaft)	Clockwise, Counter Clockwise, Bi-Rotational
