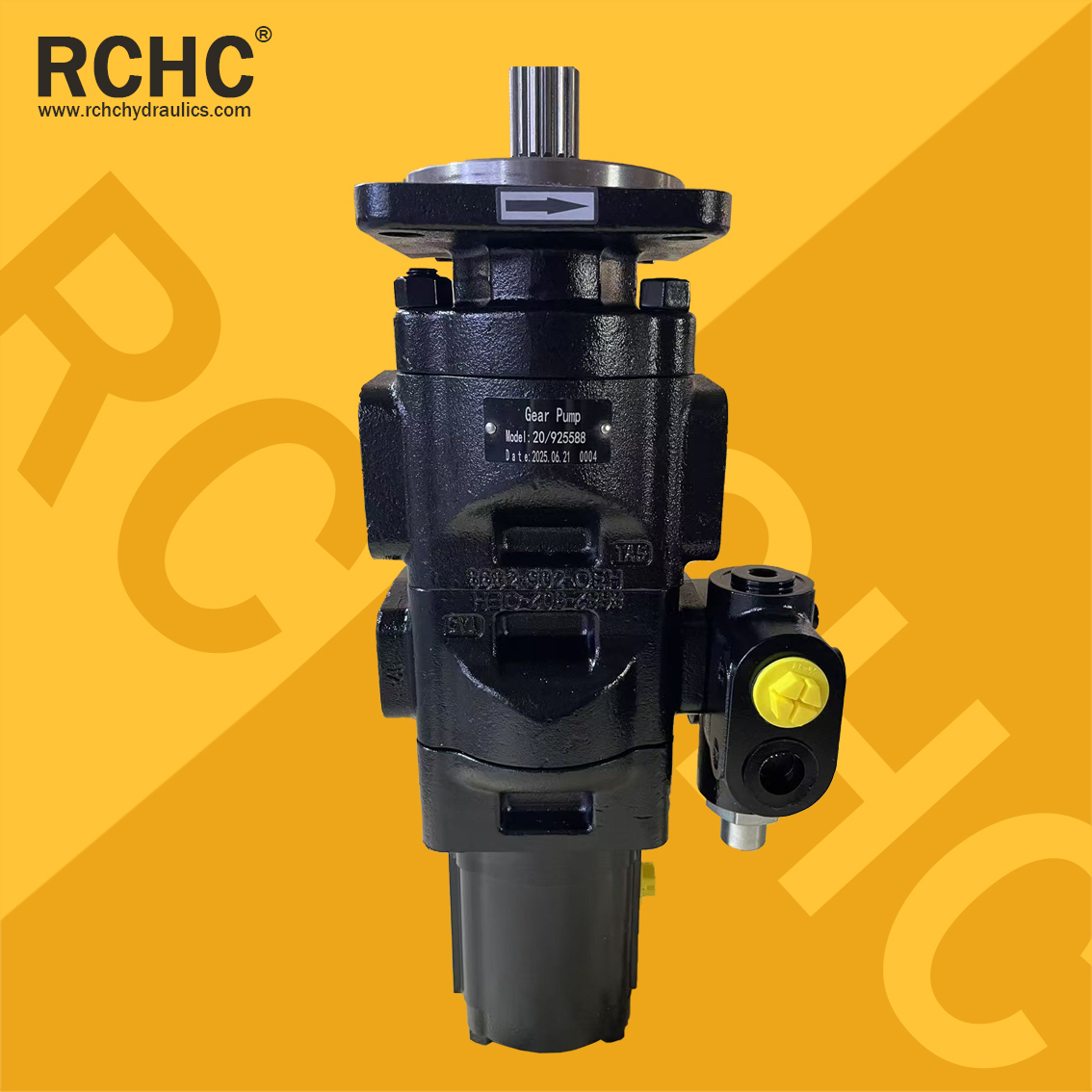

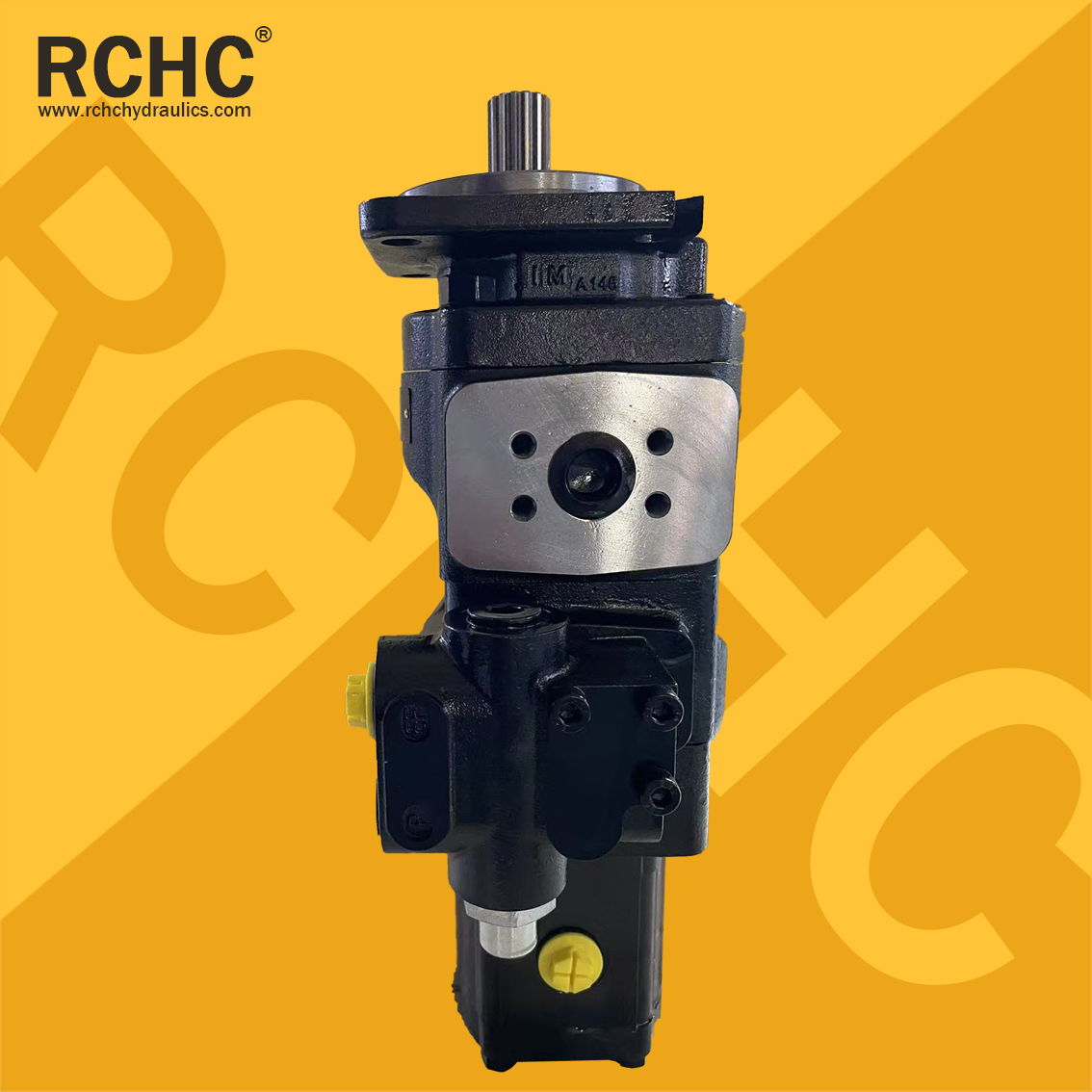

JCB 20/925588 Parker Cast Iron Triple Hydraulic Gear PumpPGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump

Parker JCB 20/918500 Triple Hydraulic Pump 29+19+16CC/REV

31/10/2025Hydraulic Gear Pump JCB Hydraulic Gear Pump PRODUCTS 48340

Rotation Counter Clockwise (looking from shaft end)

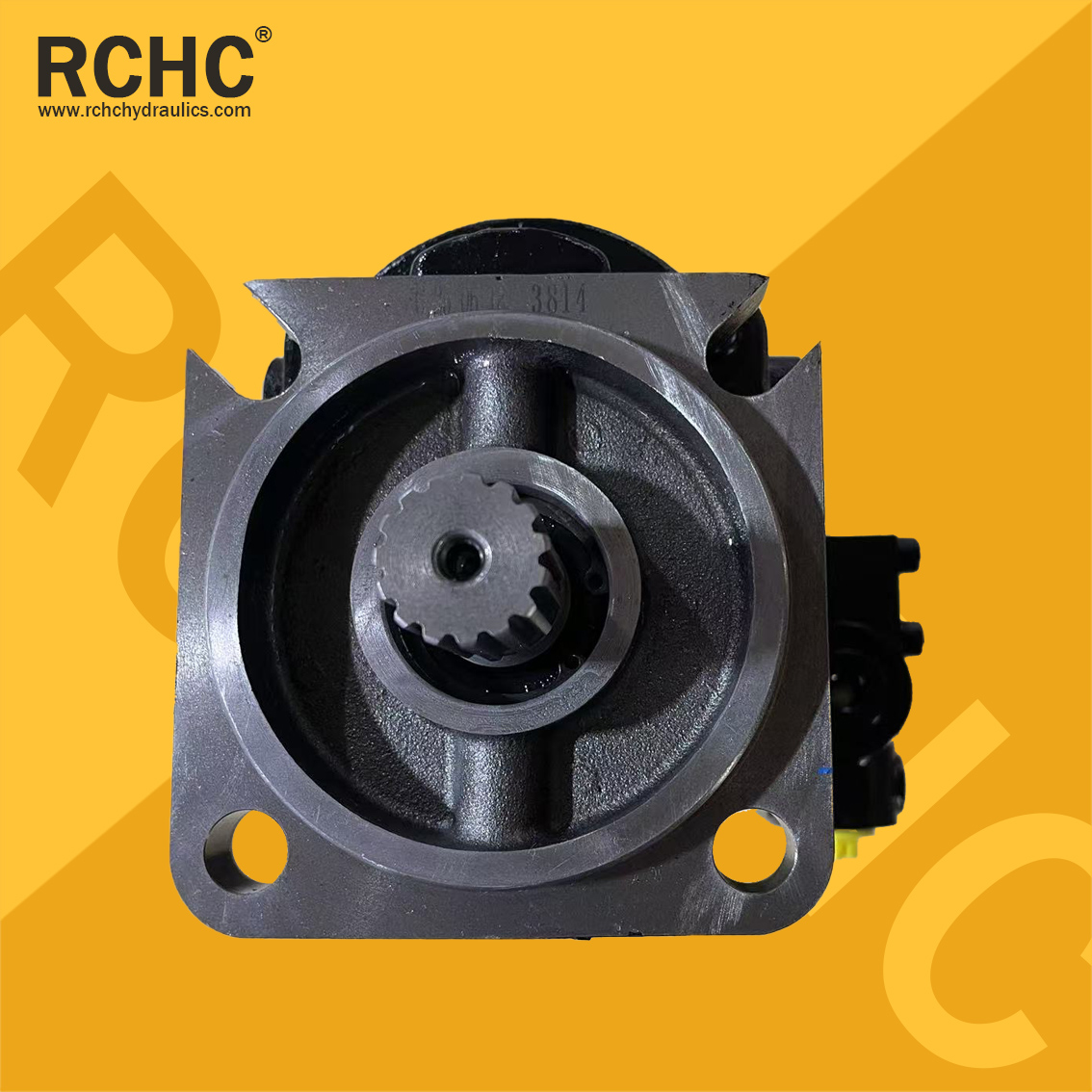

Shaft1” Diameter 15T SAE B-B splined shaft
Mounting FlangeSAE B 4 hole mounting flange
Front Pump displacement 29 cc/rev (29L/Min per 1000 rpm)
Middle Pump displacement19 cc/rev (19L/Min per 1000 rpm)
Rear Pump displacement16 cc/rev (16L/Min per 1000 rpm)
Weight38KG
price $220~$650

Energy-saving hydraulic pump hydraulic oil pump Hydraulic pump Hydraulic pump factory Parker PGP

MESSAGE

Parameter

Product

Application

Replace Part Number:
JCB:20/925588, 20/925356, 20925588, 20925356, 20-925588, 20-925356, 20/918500, 20918500, 20-918500
Parker:7029530002

Applications:
Fit For JCB Telehandler:
.530, .530 FS PLUS, .530 SUPER, .530 SWAY, .531-70, .531-70 SWAY, .532, .532 SWAY, .532LE, .532LE SWAY, .533-105, .535, .535 FS, .535-125, .535-125 HiViZ, .535-140, .535-140 HiViZ, .535-60, .535-60 FS+, .535-95, .535-95 SWAY, .536-60, .536-70, .540, .540 FS PLUS, .540 SUPER, .540 SWAY, .540-140, .541-70, .541-70 SWAY, .550, .550-140, .CD90, .OPTIONS, .PD40, .PD55, .PD80, .PD90, .S40, .S55, .S80, .SD40, .SD55, .SD80, 506-36, 507-42, 509-42, 510-56, 530, 530 FS PLUS, 530 SUPER, 530 SWAY, 530S X, 530S XL, 531-70 SWAY, 532, 532 SWAY, 532LE, 532LE SWAY, 533-105, 535 FS SUPER, 535 TELEBAT, 535-125, 535-125 HiViz, 535-140, 535-140 HiViz, 535-60, 535-60 FS, 535-60 FS PLUS, 535-95, 535-95 SWAY, 535S TELEAGRI, 535SX TELEAGRI, 535SXL TELEAGRI, 536-60, 537, 537 SWAY, 537LE, 537LE SWAY, 540, 540 FS PLUS, 540 SUPER, 540 SWAY, 540-140, 540S X, 540S XL, 541-70, 550, 550-140, 550LE, CD90, MISCELLANEOUS, OPTIONS, PD40, PD55, PD70 LSD, PD70 MAXTRAC, PD70-LSD, PD70-MAXTRAC, PD80, PD90, S40, S55, S80, SD40, SD55, SD70 LSD, SD70 MAXTRAC, SD70-LSD, SD70-MAXTRAC, SD80

Machine Fitment

PUMP MAIN HYDRAULIC M771429 M1004463 537 9802/7860
PUMP MAIN HYDRAULIC M771429 M1004463 532LE SWAY 9802/7860
PUMP MAIN HYDRAULIC M771429 M1004463 537 SWAY 9802/7860
PUMP MAIN HYDRAULIC M771429 M1004463 532 SWAY 9802/7860
PUMP MAIN HYDRAULIC M771429 M1004463 532LE 9802/7860
PUMP MAIN HYDRAULIC M771429 M1004463 537LE 9802/7860
PUMP MAIN HYDRAULIC M771429 M1004463 532 9802/7860
PUMP MAIN HYDRAULIC M771429 M1004463 537LE SWAY 9802/7860
