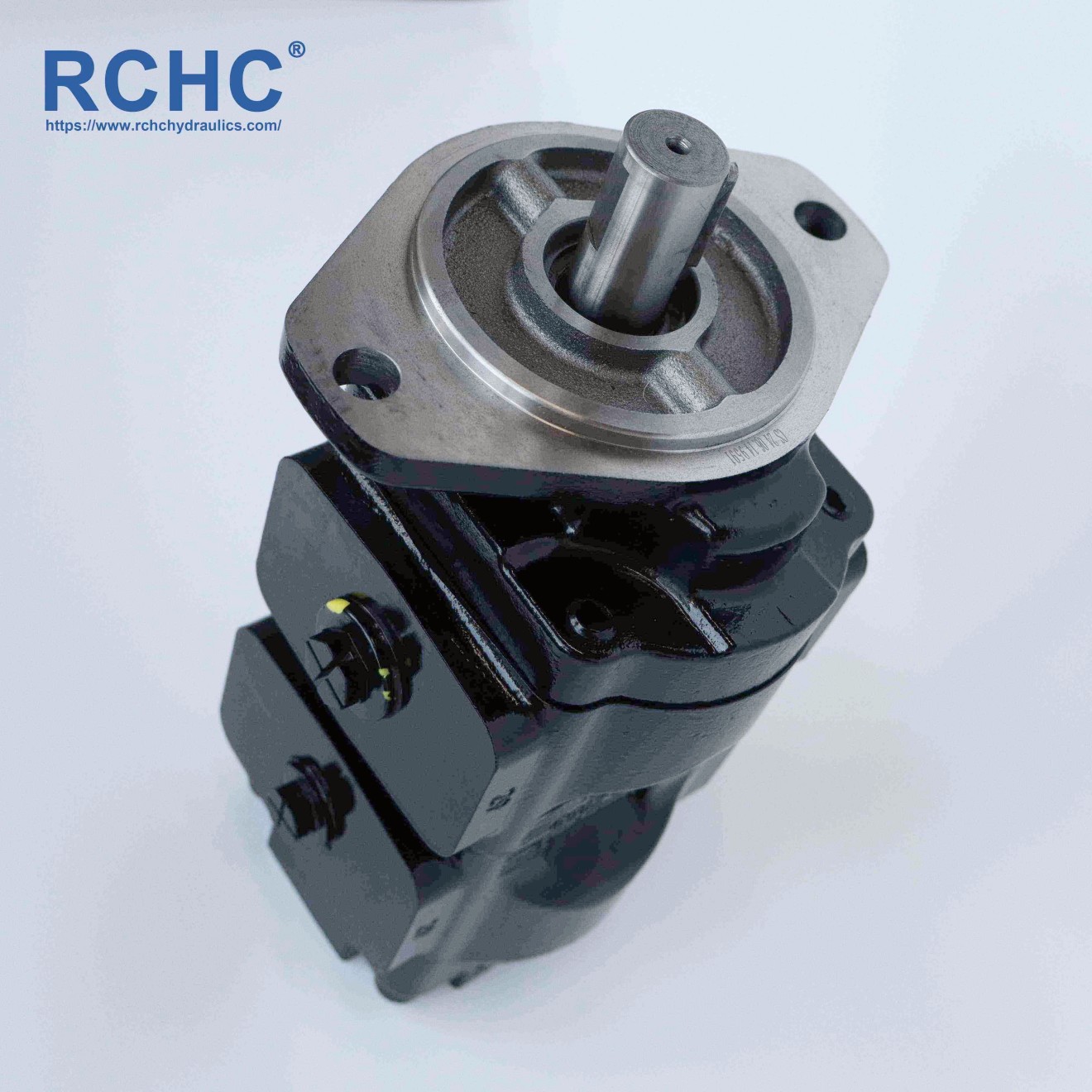

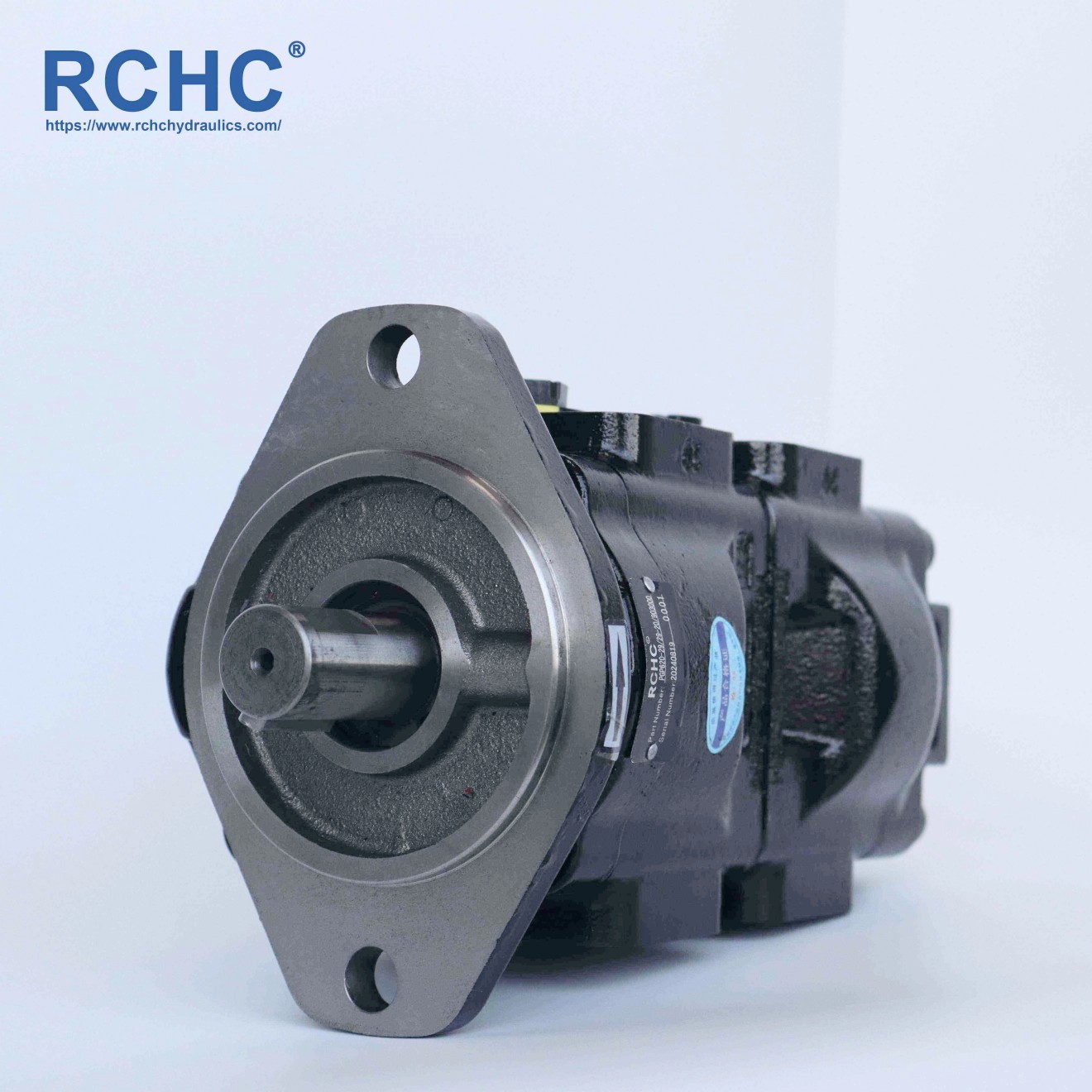

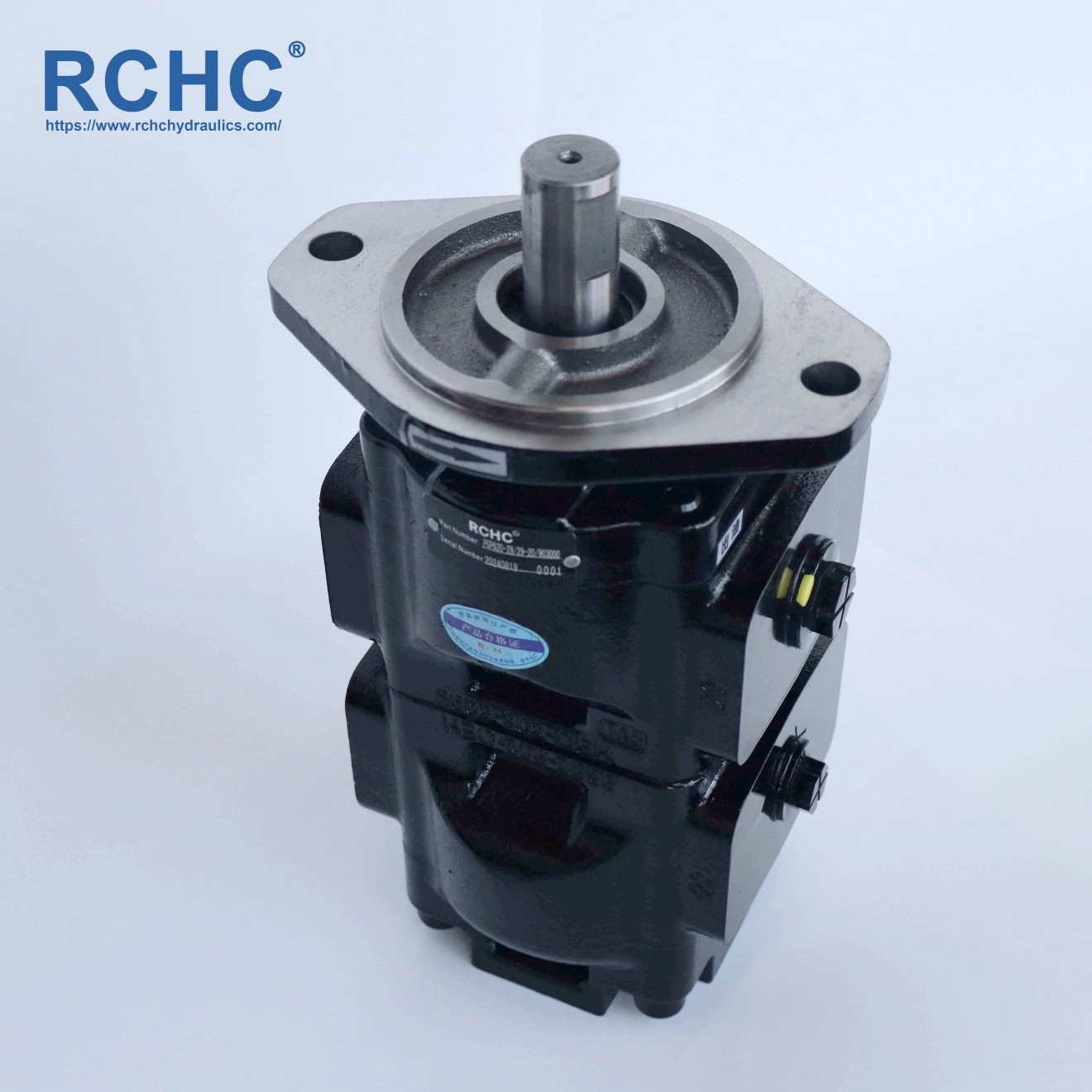

Parker Hannifin 400/E0868 JCB 3CX Twin Hydraulic Pump 33 + 29 CC/REV

Parker Hannifin 7029122001 7470-4070-4072 Hydraulic Pump 33 + 29 CC/REV

16/10/2025Hydraulic Gear Pump JCB Hydraulic Gear Pump PRODUCTS 0

RotationCounter-Clockwise (looking from shaft end)
Shaft 1” Diameter parallel keyed shaft
Mounting flangeSAE B 2 hole mounting flange
Front Pump Displacement33 cc/rev (33L/Min per 1000 rpm)
Rear pump displacement29 cc/rev (29L/Min per 1000 rpm)
InletCombined 2” SAE flange inlet
Front pump outlet 1 1/16”-12 UNF threaded
Rear pump outlet7/8”-14 UNF threaded
Maximum working pressure on front pump275 bar
Maximum working pressure on rear pump275 bar
Max. Input shaft torque325 Nm
Weight26KG
price $300~$600

MESSAGE

Parameter

Product

Application

Replaces the following JCB part numbers:

400-E0868 400/E0868 332/G6350 20/912800 20/903100 20/902900 7029122001 7470-4070-4072

Applications:
Fit For JCB Backhoe Loader:
214-2, 214-4, 214S, 214S TOOLCARRIE, 214SM-4, 215-2, 215-4, 215E, 215S, 215SM-4, 216-4, 217-2, 217-4, 217S, 217S TOOLCARRIE, 3CX, 3CX (24 Volt), 3CX (CM), 3CX 20, 3CX 30, 3CX 35, 3CX CONTRACTOR, 3CX PC, 3CX444 SUPER, 3CX444S PC, 3CX-4T, 3CX-4T PC, 3CXC PC, 3CXE, 3CXHM 30, 3CXHM 35, 3CXHMT 30, 3CXHMT 35, 3CXSM, 3CXSM 20, 3CXSM 30, 3CXSM 35, 3CXSM PC, 3CXSM444 SUPER, 3CXSM444S PC, 3CXSM-4T, 3CXSM-4T PC, 3CXSMT 20, 3CXSMT 30, 3CXSMT 35, 3CXT 20, 3CXT 30, 3CXT 35, 4C, 4C 30, 4C 35, 4C PC, 4C SUPER, 4C444, 4CN, 4CN 30, 4CN 35, 4CN PC, 4CN-2, 4CN-4, 4CN444, 4CN444 SUPER, 4CN444S PC, 4CS PC, 4CX444, 4CX444 PC, 4CX444 SUPER, 4CX444S PC, 4CXSM444, 4CXSM444 PC, 4CXSM444 SUPER, 4CXSM444S PC

Machine Fitment

PUMP, MAIN HYDRAULIC CODE 4072 M 3CX (CM) Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC M410964 4C 30 9802/9600
PUMP, MAIN HYDRAULIC M410964 3CXT 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410964 4C 35 9802/9600
PUMP, MAIN HYDRAULIC M410964 4CN 30 9802/9600
PUMP, MAIN HYDRAULIC 4CN 9802/9700
PUMP, MAIN HYDRAULIC 3CX 9802/9700
PUMP, MAIN HYDRAULIC M410964 3CXHMT 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410964 3CXSMT 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 4C 9802/9700
PUMP, MAIN HYDRAULIC M410964 3CXT 20 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410964 3CXHMT 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410964 4CN 35 9802/9600
PUMP, MAIN HYDRAULIC M410964 3CXSMT 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 3CX4M Military Sideshift 9802/9709
PUMP, MAIN HYDRAULIC M410964 3CXT 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
PUMP, MAIN HYDRAULIC M410964 3CXSMT 20 Sideshift 9802/9600

Other Products

Company Profile

Ruichen Hydraulic Machinery Manufacturing Co., Ltd., established in 2000, is a global provider of high-quality hydraulic solutions. Located in Hebei Province, China, our 55,000 m² factory employs over 300 staff, including 15 engineers and 5 senior engineers. We specialize in cast iron gear pumps, gear motors, and hydraulic control valves, widely used in construction machinery, agricultural equipment, mining, and industrial applications.
