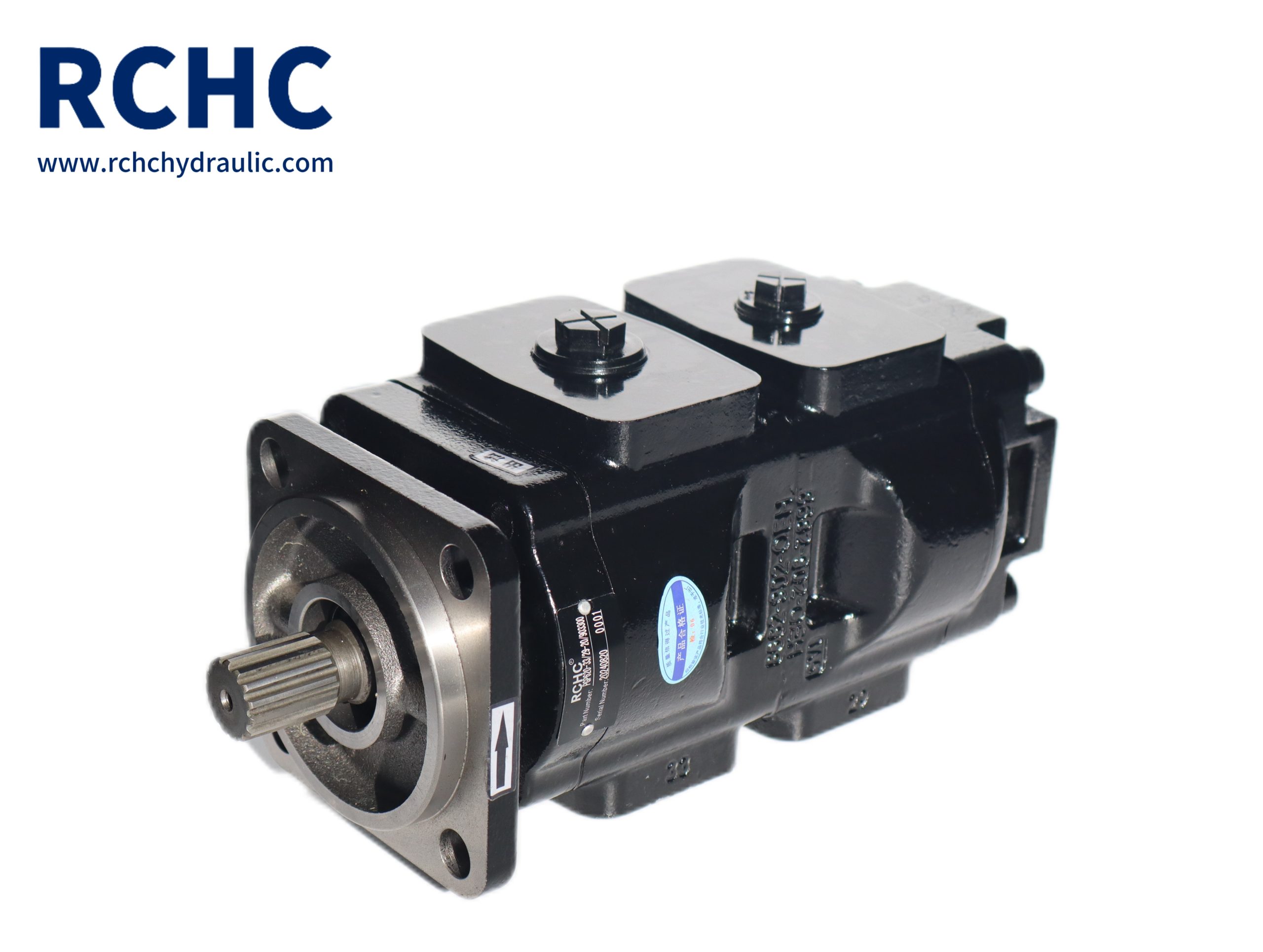

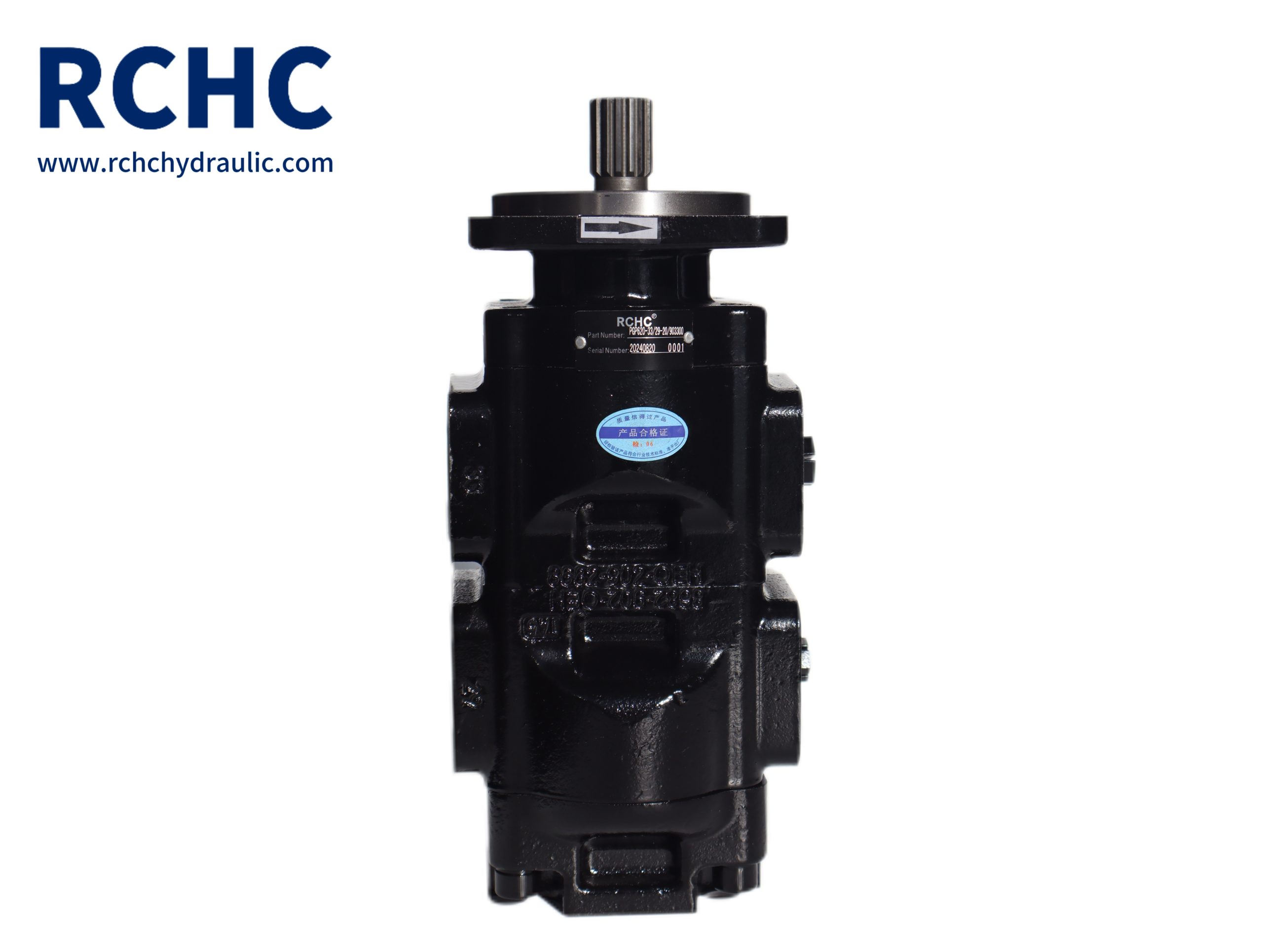

Parker Hannifin 20/903300 JCB Double hydraulic pump 33

Parker 20/903300 JCB hydraulic gear pump 33+ 29 CC/REV

26/12/2024Hydraulic Gear Pump JCB Hydraulic Gear Pump PRODUCTS 0

RotationClockwise (looking from shaft end)
Shaft1” Diameter 15T Splined shaft
Mounting FlangeSAE B 4 hole mounting flange
Front Pump Displacement33 cc/rev (33L/Min per 1000 rpm)
Rear pump displacement29 cc/rev (29L/Min per 1000 rpm)
Weight26KG
InletSingle 2” SAE flange inlet
Front pump outlet 1 1/16”-12 UNF threaded
Rear pump outlet7/8”-14 UNF threaded
Maximum working pressure on front pump250 bar
Maximum working pressure on rear pump250 bar
Max. Input shaft torque460Nm
price $290~$590

MESSAGE

Product

Parameter

Application

Part Number:
20/903300, 20903300, 20/903300R , 20903300R, 20/903300X, 20903300X

Applications:
JCB Backhoe Loader:
3CX, 4CX, 5CX, 215S, 217S, 4C444, 4CX444, 4CX444 SUPER, 4CX444 SP 35, 4CX444 SP 30, 4CXSM444, 4CN444 PS 35, 4CN444 MS 35

Machine Fitment

PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 MS 35 Manual shift 35KPH
PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 PS 20 Power shift 20KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 PS 35 Power shift 35KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 4CN444 AWS 9802/9510
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 PS 30 Power shift 30KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 4C444 AWS 9802/9510
PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 MS 20 Manual shift 20KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 PS 20 Power shift 20KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 PS 30 Sideshift AWS 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 PS 35 Sideshift AWS 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 MS 30 Manual shift 30KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444SM SP 20 Servo Command 20KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 MS 20 Manual shift 20KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 PS 35 Power shift 35KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 4CX444 Sideshift AWS 9802/9510
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444SM SP 35 Servo Command 35KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 MS 35 Manual shift 35KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 3CX444 Sideshift AWS 9802/9520
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 MS 30 Manual shift 30KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 SP 30 Servo Command 30KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 MS 35 Manual shift 35KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 SP 35 Servo Command 35KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 4CX444 SUPER Sideshift AWS 9802/9510
PUMP, MAIN HYDRAULIC 4074 M411710 4CXSM444 PS 30 Power shift 30KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 MS 30 Manual shift 30KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444SM SP 30 Servo Command 30KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 4CXSM444 Sideshift AWS 9802/9510
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 SP 20 Servo Command 20KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CX444 SP 35 Servo Command 35KPH 9802/9500
PUMP, MAIN HYDRAULIC 4074 M411710 4CN444 SP 30 Servo Command 30KPH 9802/9500
P
UMP, MAIN HYDRAULIC 4074 4CXSM444 SUPER Sideshift AWS 9802/9510
