Parker Hannifin 332/F9030 JCB 3CX Twin Hydraulic Pump 36 + 29 CC/REV

Parker 7029120025 JCB 3CX Hydraulic gear Pump 36+29 CC/REV

06/11/2025Hydraulic Gear Pump JCB Hydraulic Gear Pump PRODUCTS 0

RotationClockwise (looking from shaft end)

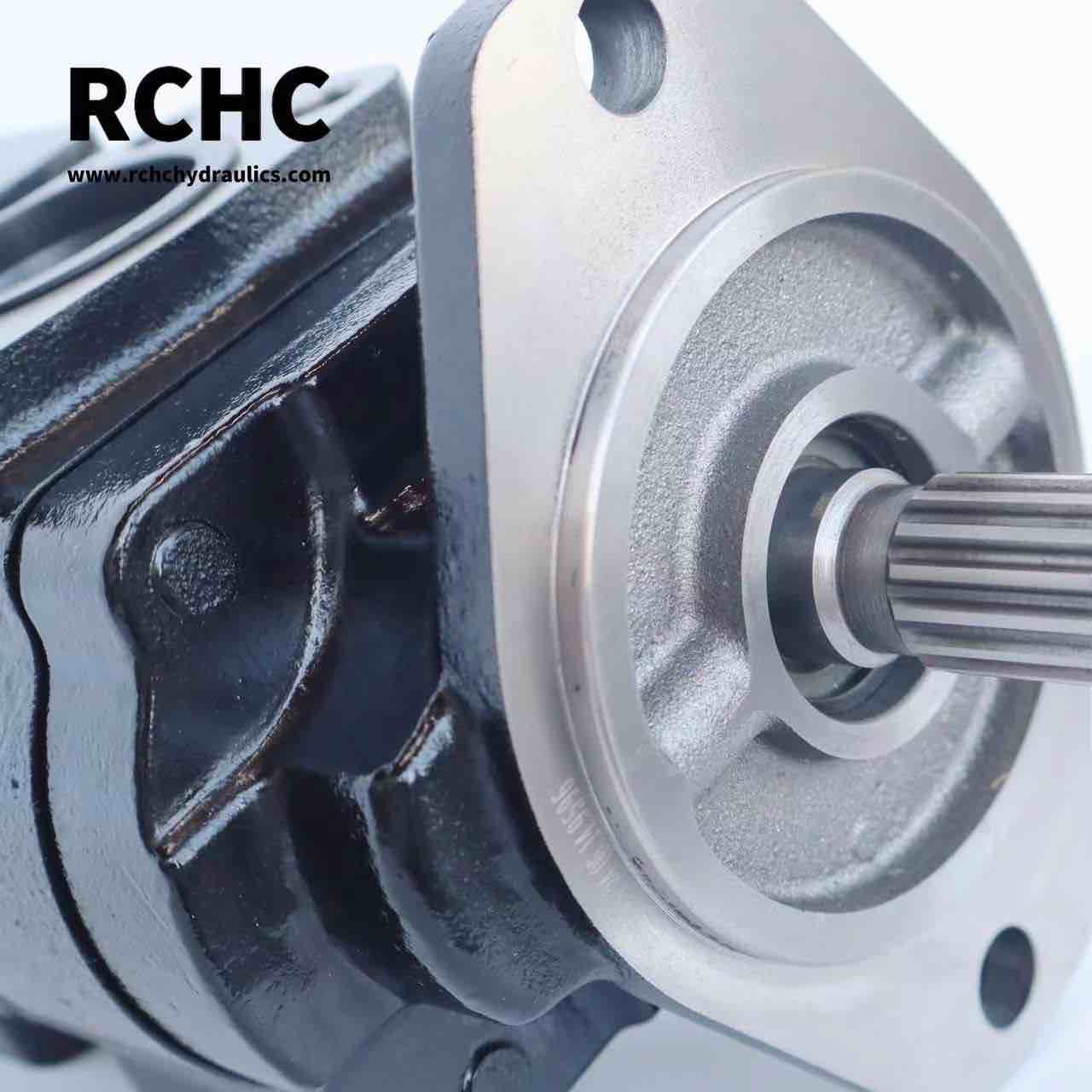

Shaft1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
Mounting FlangeSAE B 2 hole mounting flange
Front Pump Displacement 36 cc/rev (36L/Min per 1000 rpm)
Rear pump Displacement29 cc/rev (29L/Min per 1000 rpm)
InletSingle 2” SAE flange inlet
Front pump outlet1 1/16”-12 UNF threaded
Rear pump outlet7/8”-14 UNF threaded
Maximum working pressure on front pump250 bar
Maximum working pressure on rear pump275 bar
Max. Input shaft torque460 Nm
Weight26KG
Price $300~$600

MESSAGE

Parameter

Product

Application

Replaces the following JCB part numbers
20/925580 332/F9030 20/925580 7029120048 7029120025

Application:
Fit for JCB Backhoe Loader:
3C, 3CX, 3D, 3DX, 4C, 4CX, 1400B, 1550B, 1600B, 1700B, 214, 215, 216, 217

Machine Fitment
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CXM New Zealand MILITARY 9812/0050
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CX-PC Precision Control (Servo) 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T-PC Precision Control (Servo) 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CXS AWS 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 100 HP BUILDS 4CXM (FRANCE) FRENCH MILITARY 9812/0070
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CX 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CXS-PC Precision Control (Servo) 9812/0010
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CXSM MANUAL Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CXSM-4 Centremount 9802/9810
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX MANUAL Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX-4 Centremount 9802/9810
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX SUPER Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX P/S Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX SUPER MAN Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX SUPER P/S Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CXSM444 SUPER Centremount 9802/9810
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX CONTRACTOR Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX-4T PC Precision Control (Servo)- Sideshift 9802/9830
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX-4WS PC Precision Control (Servo)- Sideshift 9802/9830
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CXSM Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CXSM 4TPC Precision Control (Servo)- Sideshift 9802/9830
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 Sideshift 9802/9800

Other Products

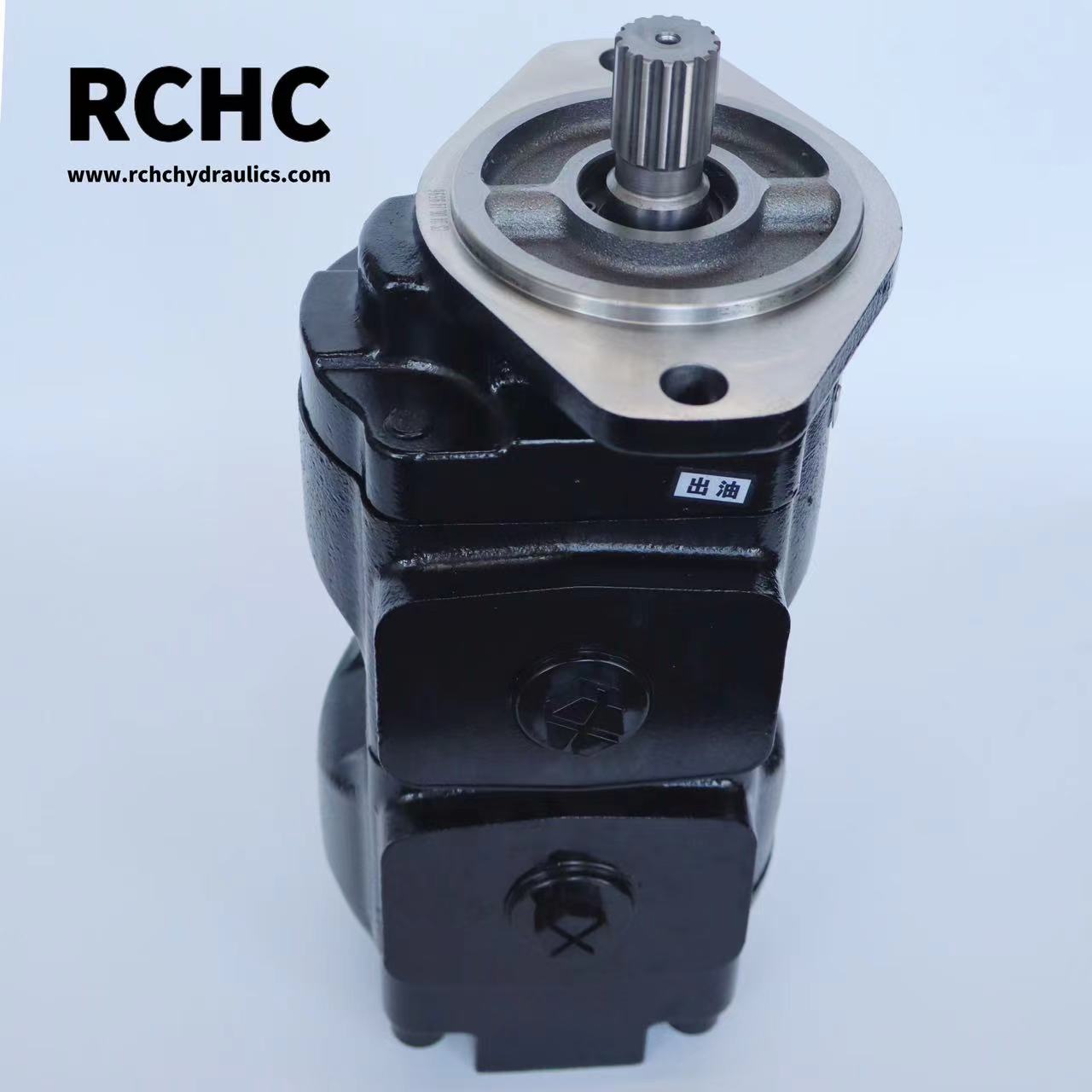

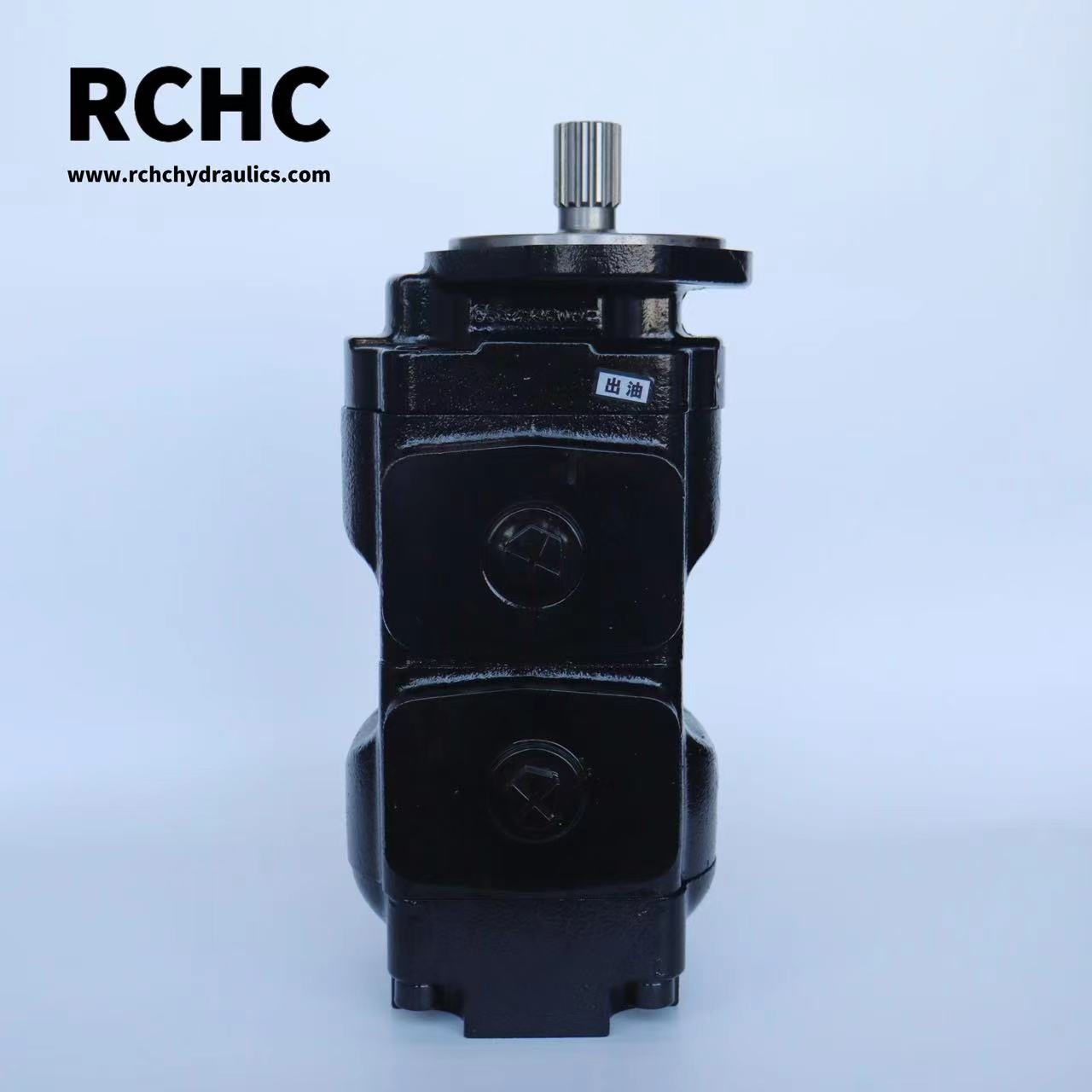

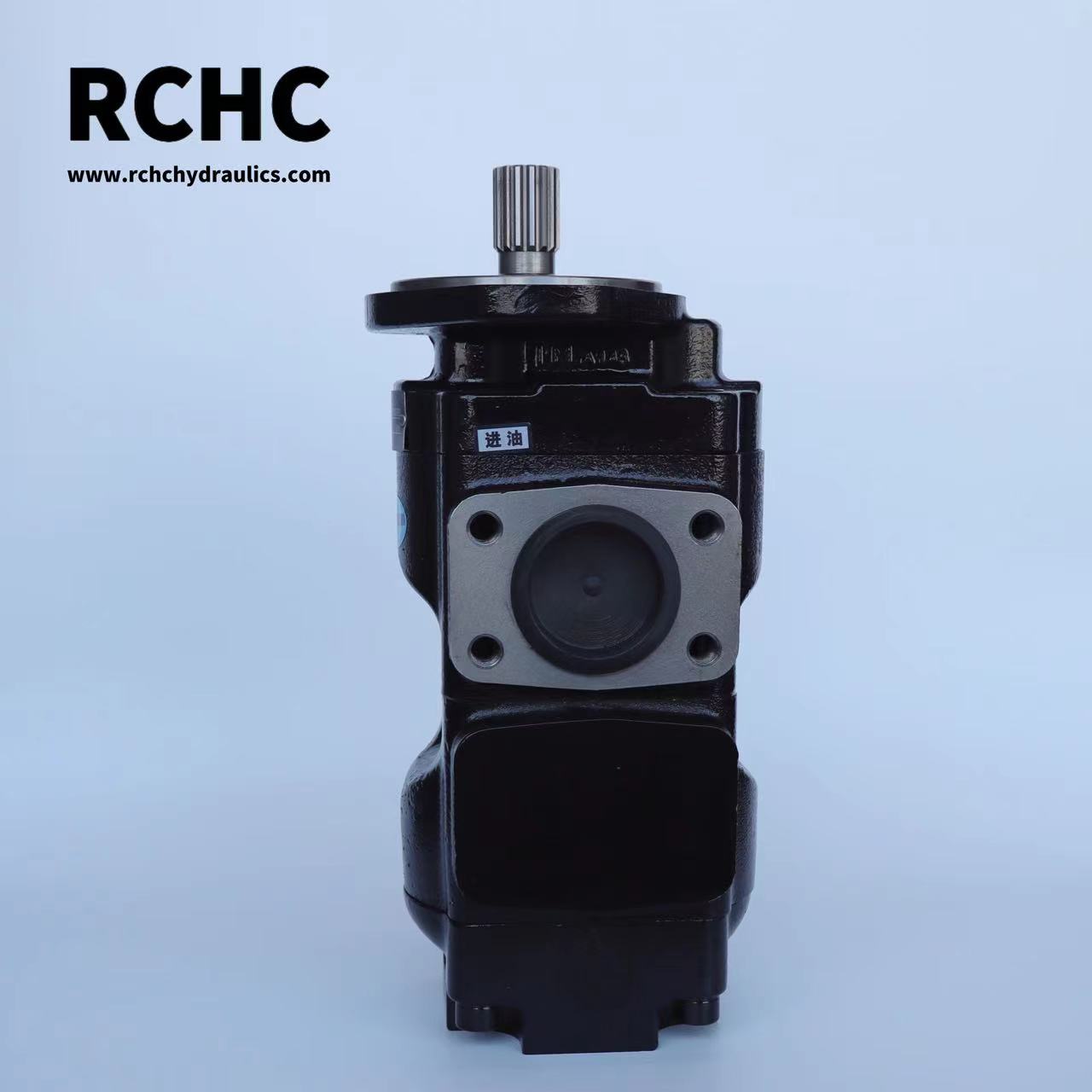

Parker 7029120025 JCB 3CX Hydraulic gear Pump 36+29 CC/REV（images 1）

Parker 7029120025 JCB 3CX Hydraulic gear Pump 36+29 CC/REV（images 2）

Parker 7029120025 JCB 3CX Hydraulic gear Pump 36+29 CC/REV（images 3）

Parker 7029120025 JCB 3CX Hydraulic gear Pump 36+29 CC/REV（images 4）

Company Profile

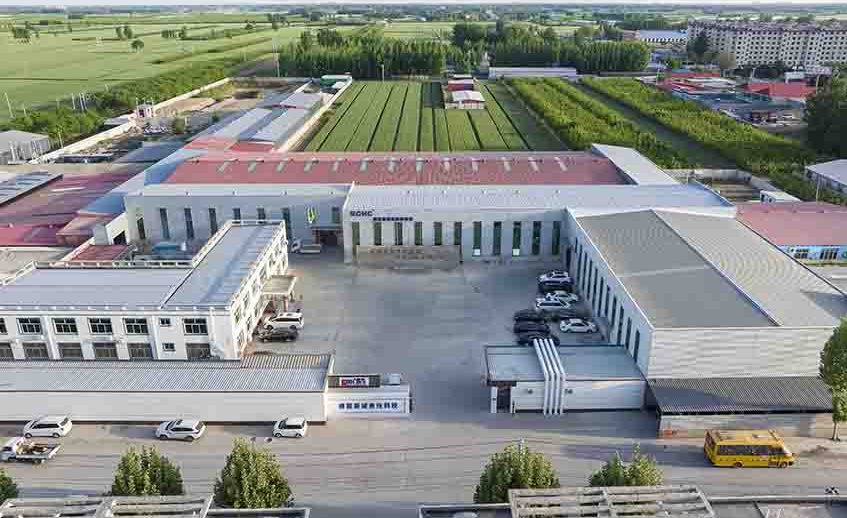

Ruichen Hydraulic Machinery Manufacturing Co., Ltd., established in 2000, is a global provider of high-quality hydraulic solutions. Located in Hebei Province, China, our 55,000 m² factory employs over 300 staff, including 15 engineers and 5 senior engineers. We specialize in cast iron gear pumps, gear motors, and hydraulic control valves, widely used in construction machinery, agricultural equipment, mining, and industrial applications.
