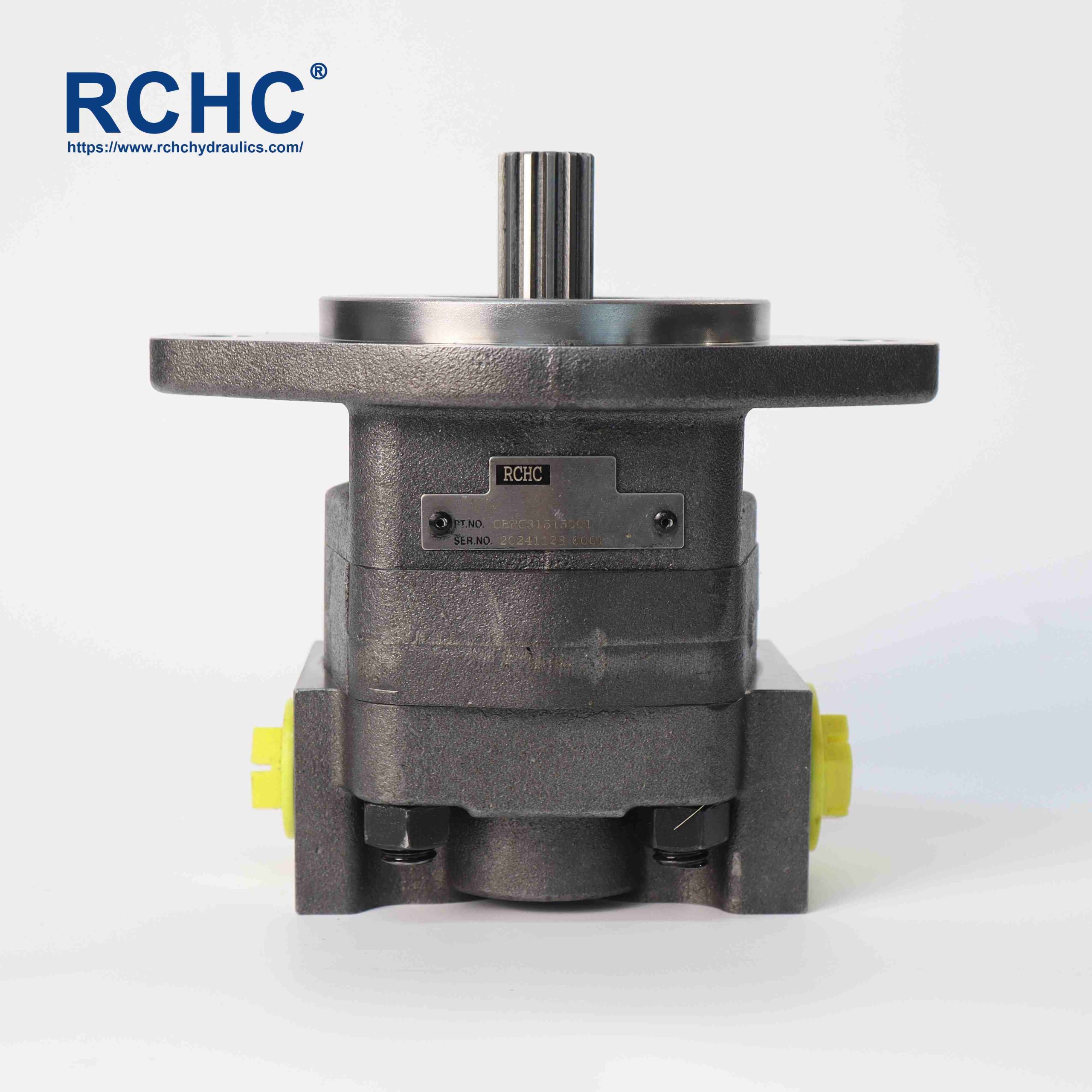

PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump

OEM Parker PGP315 Hydraulic Gear Pump

23/12/2025Hydraulic Gear Pump PGP Hydraulic Gear Pump PRODUCTS 66430

ShaftKey shaft
Rotation Counter Clockwise (looking from shaft end)
Mounting FlangeSAE B 2 hole mounting flange
Displacement20.9-104.5cc//rev
Maximum Speed2400RPM
price $280~$390

Energy-saving hydraulic pump hydraulic oil pump Hydraulic pump Hydraulic pump factory Parker PGP

MESSAGE

View the technical manual↗

Parameter

Product

Application

PRODUCT INTRODUCTION
RCHC’s RPGP315 series fixed displacement gear pumps offer high pressure durability due to their cast iron construction, making them ideal for high duty cycle mobile applications for the Construction, Forestry, and Oil & Gas markets. They are available as a standard pump, clutch pump, and tandem pump.Displacements from 0.62 to 2.48 cir (10.2 to 40.6 cc/rev)，Operating pressures up to 241 bar (3,500 psi)，Speeds up to 3,000 rpm，Volumetric efficiencies up to 98%， CW, CCW, and Bi-rotational pumps available， SAE and SI shafts, flanges and porting available.

Product Features	Description
Pump Type	Heavy-duty, cast iron, external gear
Mounting	SAE standard fanges
Ports	SAE split fanges and other types of threaded ports, see Specifcations
Shaft Style	SAE splined, keyed, and others, see Specifcations
Maximum Speed	400 – 3000 rpm, see Specifcations
Theor. displacement	See Specifcations 0.62 to 2.48 in³
Drive	Clockwise, counterclockwise, double.Direct drive with fexible coupling is recommended.Pumps subject to radial loads must be specifed with an outboard bearing.Axial loading is not allowed.
Inlet pressure	30 psia (15psig) maximum pressure / 5 in.Hg maximum vacuum at operating temperature
Outlet pressure	See Specifcations
Hydraulic fuids	Mineral oil, fre resistant fuids: water-oil emulsions 60/40, MFB; water-glycol, HFC; phosphate-esters, HFD (FPM seals required)
Fluid viscocity	From 7.5 to 1600 cSt (50 to 7500 sus). Recommended 15 to 75 cSt.
Fluid temperature	Mineral oil with standard seals: 0°F to 180°F (-20°C to 80°C); Fire resistant fuids HFB, HFC: 0°F to 150°F (-20°C to 65°C)
Filtration	ISO 4406 code: • 19/16 at 2000 psi/140 bar • 17/14 at 3000 psi/210 bar • 15/12 at 4000 psi/275 bar
Direction of rotation (looking at the drive shaft)	CW, CCW, Bi-Rotational
Multiple pump assemblies	Up to 6 gear selections of the same model, even with different gear widths
Separate or common inlet capability	Common

Please see the PDF file for more detailed information about this product ↓

RPGP 315 330 350 365-Technical-Manual.pdf

Other Products

Company Profile

Ruichen Hydraulic Machinery Manufacturing Co., Ltd., established in 2000, is a global provider of high-quality hydraulic solutions. Located in Hebei Province, China, our 55,000 m² factory employs over 300 staff, including 15 engineers and 5 senior engineers. We specialize in cast iron gear pumps, gear motors, and hydraulic control valves, widely used in construction machinery, agricultural equipment, mining, and industrial applications.

Quality Certificate

Message

PGP315 series OEM number：
3249111020 PGP315 L296NUAB20-66MKAB15-1
3249111021 PGP315 L296NUAB20-65MKAB15-1
3249111022 PGP315 L296NPAB15-65GNAB07-1DAB07-1
3249111023 PGP315 L296BIAB20-65GTAB15-1
3249111632 PGP315 L296BIAB20-65GJAB20-1
3249112017 PGP315 L296BIAB20-65GJAB12-1
3249112018 PGP315 L296BIAB15-65GTAB15-1
3249112019 PGP315 L296BIAB15-65GPAB15-1QKAB05-1
3249112020 PGP315 L296BIAB15-65GJAB15-1
3249112026 PGP315 L296BIAB15-65GJAB07-1
3249114025 PGP315 L296BIAB12-65GPAB12-1QKAB05-1
3249114026 PGP315 L196PNAB13-65**AB13-1**AB03-1
3249114028 PGP315 L196PEAB20-66KQAB13-1KQAB07-1
3249114033 PGP315 L196PEAB12-65**AB10-1
3249114034 PGP315 L196BIAB20-66MGAB10-1
3249114035 PGP315 L196BIAB20-66KQAB07-1TGAB07-1
3249114038 PGP315 L196BIAB17-65JGAB10-1
3249114039 PGP315 L196*PEAB05-65**AB05-1**AB05-1
3249114040 PGP315 L196**AB07-65
3249114041 PGP315 L*296BIAB07-65GTAB07-1
3249114604 PGP315 B396*EPAB*08-65QKAB*08-1
3249115007 PGP315 B296XFAB16-66SMAB16-1
3249115013 PGP315 B296WFAB12-66RMAB12-1
3249115015 PGP315 B296NPAB15-65GNAB07-1DAB07-1
3249115017 PGP315 B296LBAB17-66RMAB10-1
3249115021 PGP315 B296LBAB15-65RMAB15-1
3249115022 PGP315 B296EPAB15-65RMAB10-1RMAB03-1
3249115024 PGP315 B296EPAB05-65QKAB05-1QKAB05-1
3249115025 PGP315 B296BIAB20-65GTAB12-1
3249115026 PGP315 B296BIAB20-65ACAB15-1
3249115027 PGP315 B296BIAB16-65GTAB12-1
3249115028 PGP315 B296BIAB12-65GMAB05-1
3249120313 PGP315 B296BIAB10-65ADAB07-1
3249120314 PGP315 B296BIAB05-65GTAB05-1
3249120319 PGP315 B296**AB20-65OKAB12-1
3249120321 PGP315 B296**AB20-65OKAB10-1
3249120326 PGP315 B296**AB20-65OKAB07-1
3249120337 PGP315 B296**AB15-66MKAB20-1-PRIV
3249120338 PGP315 B296**AB15-65OKAB12-1
3249120339 PGP315 B293MPAB05-96BMAB05-1
3249120347 PGP315 B293JOAB08-66FHAB08-1
3249120349 PGP315 B196UNAB20-66TGAB07-1CAB07-1
3249120350 PGP315 B196PQAB10-65HX*AB03-1
3249120352 PGP315 B196PEAB20-66KQAB07-1KQAB07-1
3249120353 PGP315 B196PEAB20-65KMAB12-1
3249120354 PGP315 B196PEAB15-65KQAB12-1KQAB10-1
3249120355 PGP315 B196PEAB15-65KQAB07-1
3249120359 PGP315 B196PEAB08-65KQAB08-1KQAB08-1KQAB08-1
3249120361 PGP315 B196JEAB07-65HFAB07-01
3249120362 PGP315 B196FXAB15-65KQAB12-1KQAB07-1
3249120365 PGP315 B196EVAB20-65CQAB20-1
3249120398 PGP315 B196BIAB20-65TGAB12-1
3249120408 PGP315 B196BIAB17-66SGAB05-1
3249121010 PGP315 B196BIAB16-65MGAB07-1
3249121011 PGP315 B196BIAB15-66SGAB05-1
3249121013 PGP315 B196BIAB15-65TGAB10-1
3249121014 PGP315 B196BIAB15-65PGAB12-1
3249121015 PGP315 B196BIAB15-65MGAB10-1
3249121016 PGP315 B196BIAB12-66SGAB05-1
3249121017 PGP315 B196BIAB10-66CJAB07-1CAAB07-1
3249121020 PGP315 B196BIAB10-65NGAB10-1
3249121023 PGP315 B196BIAB10-65CAAB10-1
3249121026 PGP315 B196BIAB07-65TGAB12-1
3249122025 PGP315 B196BIAB05-65TGAB05-1
3249122027 PGP315 B196**AB20-65KMAB12-1-PRIV
3249122029 PGP315 B196**AB12-66**AB12-1
3249122030 PGP315 B196**AB12-66**AB10-1
3249122033 PGP315 B196**AB12-65MRAB15-1-PRIV
3249122036 PGP315 B196**AB12-65KOAB10-1
3249122038 PGP315 B193PQAB05-66MXAB05-1HYAB10-1
3249122039 PGP315 B193PNAB12-****AB07-1
3249122041 PGP315 B193FWAB20-65KOAB10-1
3249124020 PGP315 B193BLAB10-97MRAB10-1
3249124021 PGP315 B193BIAB20-66BDAB05-1
3249124022 PGP315 B193BIAB11-66XCAB11-1
3249124023 PGP315 B193*FLAB12-96MNAB12-1
3249124024 PGP315 A396*VNEB20-65
3249124026 PGP315 A396*VNEB15-66
3249124027 PGP315 A396*RNEB20-65
3249125014 PGP315 A396*RNEB15-65
3249125016 PGP315 A396*RNEB10-65
3249125017 PGP315 A393*VREB10-96
3249125018 PGP315 A296WFAB20-66
3249125019 PGP315 A296WFAB12-65
3249125025 PGP315 A296UQAB12-65
3249130023 PGP315 A296SLAB12-66
3249130089 PGP315 A296NUAB10-65
3249130096 PGP315 A296LBAB12-66
3249130099 PGP315 A296JEAB08-65
3249130100 PGP315 A296CUAB20-66
3249131006 PGP315 A296CUAB13-65
3249134002 PGP315 A296BFAB13-66
3249140016 PGP315 A296**AB20-66
3249140017 PGP315 A296**AB18-65
3249150001 PGP315 A296**AB16-65*
3249210008 PGP315 A296**AB16-65*
3249210069 PGP315 A296**AB15-65
3249210081 PGP315 A296**AB11-65
3249210082 PGP315 A296**AB10-65
3249210084 PGP315 A296**AB05-65
3249210088 PGP315 A296**AB03-65*
3249210091 PGP315 A293XFAB12-65
3249210092 PGP315 A293WFAB17-96
3249210094 PGP315 A293WFAB17-65
3249210096 PGP315 A293VEAB20-**
3249210100 PGP315 A293SLAB12-65
3249210101 PGP315 A293QUAB17-96
3249210102 PGP315 A293QUAB08-96
3249210103 PGP315 A293QUAB07-65
3249210105 PGP315 A293QUAB06-96
3249210114 PGP315 A293QLAB10-65
3249210115 PGP315 A293JEAB15-66
3249218001 PGP315 A293JEAB12-96
3249218014 PGP315 A293JEAB10-96
3249218016 PGP315 A293JEAB08-96
3249218019 PGP315 A293CFAB07-97
3249218024 PGP315 A293BFAB17-96
3249218025 PGP315 A293*NUAB17-65*
3249218026 PGP315 A293*NUAB15-65*
3249218027 PGP315 A196URAB07-65
3249218031 PGP315 A196UQAB15-65
3249218032 PGP315 A196UQAB12-65*
3249218033 PGP315 A196UNAB10-65
3249218034 PGP315 A196UCAB13-65
3249218035 PGP315 A196UCAB12-65
3249218036 PGP315 A196OEAB08-65
3249218038 PGP315 A196FNAB15-65
3249218039 PGP315 A196FBAB20-66
3249218041 PGP315 A196FBAB17-66
3249218043 PGP315 A196EVAB20-66
3249218044 PGP315 A196EVAB17-66
3249218046 PGP315 A196EVAB12-66
3249218047 PGP315 A196EVAB10-66
3249218055 PGP315 A196EJAB17-65
3249218111 PGP315 A196EJAB08-65
3249218627 PGP315 A196EJAB03-65*
3249218630 PGP315 A196BJAB05-66
3249219007 PGP315 A196BIAB20-66BDAB05-1
3249219008 PGP315 A196ALAB12-65
3249219009 PGP315 A196*FWAB07-65*
3249219010 PGP315 A196*FNAB20-66
3249219012 PGP315 A196*FNAB17-66
3249219014 PGP315 A196*FNAB13-66
3249219017 PGP315 A196*FNAB11-66
3249219020 PGP315 A196*FNAB08-66
3249219602 PGP315 A196*FNAB06-66
3249529024 PGP315 A196*FNAB05-66
3249529056 PGP315 A196*FNAB03-66
3249529056 PGP315 A196**AB20-65-CF-PRIV-4.0,RV
3249529060 PGP315 A196**AB12-65*-PRIV
3249529065 PGP315 A195**AB20-56
3249529066 PGP315 A195**AB17-56
3249529072 PGP315 A195**AB15-56
3249529080 PGP315 A195**AB12-56
3249529088 PGP315 A195**AB10-56
3249529091 PGP315 A193UQAB12-65
3249529092 PGP315 A193UQAB10-65
3249539102 PGP315 A193UCAB12-65
3249539118 PGP315 A193QUAB10-65
3249539139 PGP315 A193QUAB07-65
3269110199 PGP315 A193PQAB10-97
3269110258 PGP315 A193FXAB05-97
3269110290 PGP315 A193FWAB15-65
3269110303 PGP315 A193FWAB05-96
3269110337 PGP315 A193FRAB12-65
3269110344 PGP315 A193FGAB12-66
3269110345 PGP315 A193FCAB17-96
3269110349 PGP315 A193FBAB20-65
3269110351 PGP315 A193FBAB05-97
3269110354 PGP315 A193EVAB10-66
3269110360 PGP315 A193EVAB05-66
3269110361 PGP315 A193EJAB20-66
3269110362 PGP315 A193EJAB07-97
3269110368 PGP315 A193EJAB07-66
3269110391 PGP315 A193BNAB06-97
3269110392 PGP315 A193BLAB12-97
3269110399 PGP315 A193BLAB11-96
3269110400 PGP315 A193BLAB05-97
3269110401 PGP315 A193BLAB03-97
3269110402 PGP315 A193ARAB08-97*
3269110403 PGP315 A193AMAB17-**
3269110404 PGP315 A193*FXAB10-96*
3269110405 PGP315 A193**AB17-65
3269110406 PGP315 A193**AB12-96-PRIV
3269110408 PGP315 A193**AB12-**
3269110409 PGP315 A193***AB12-**-PRIV
3269110410 PGP315 A189**AB12-56
3269130032 PGP315 B190**AB10-60**AB05-1**A
3269130042 PGP315 B296**AB11-65**AB11-1**A
