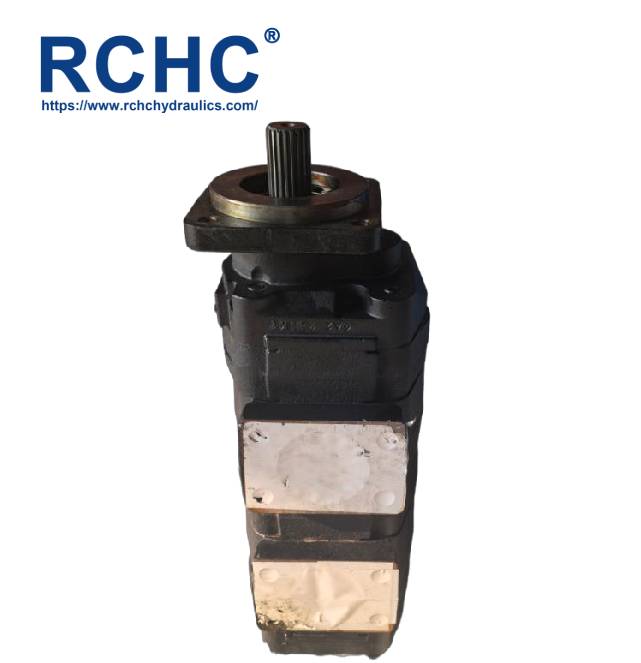

PGP365 3229124026 B478EKAB22-11HCAB15-1 hydraulic pump

OEM Parker PGP365 3229930005-BR Hydraulic Gear Pump

25/02/2026Hydraulic Gear Pump PGP Hydraulic Gear Pump PRODUCTS 71420

ShaftSplined shaft
RotationCW, CCW, Double
Mounting FlangeSAE B 4 hole mounting flange
Displacement44.3-147.5cc//rev
Maximum Speed2400RPM
price $280~$490

Energy-saving hydraulic pump hydraulic oil pump Hydraulic pump Hydraulic pump factory Parker PGP

MESSAGE

View the technical manual↗

Parameter

Product

Application

PRODUCT INTRODUCTION
RCHC’s RPGP365 series fixed displacement gear pumps offer high pressure durability due to their cast iron construction, making them ideal for high duty cycle mobile applications for the Construction, Forestry, and Oil & Gas markets. They are available as a standard pump, clutch pump, and tandem pump.Flow range to 93.5 gpm (354 lpm) per section,Displacements from 2.7 to 9 cir (44.3 to 147.5 cc/rev),
Operating pressures up to 241 bar (3,500 psi),Speeds up to 2,400 rpm,Volumetric efficiencies up to 98%,CW, CCW, and Bi-rotational pumps available,SAE and SI shafts, flanges and porting available.

Product Features	Description
Pump Type	Heavy Duty, Cast Iron, External Gear
Mounting	SAE Standard Flanges
Ports	SAE Split Flanges and other types of Threaded Ports, See Specifcations
Shaft Style	SAE Splined, Keyed, and others, See Specifcations
Maximum Speed	2400 RPM
Theor. displacement	See Specifcations
Drive	CW, CCW, Double
Inlet pressure	15psig Max Press / 5inHg Max Vac
Outlet pressure	See Specifcations
Hydraulic fuids	Mineral Oil, Water-Oil Emulsions 60/40HFB, Water-glycol, HFC, Phosphate-esters, HFD
Fluid viscocity	50 to 7500 SUS; Recommended 80 to 350 SUS
Port Connection	Flange/Straight Threaded
Fluid temperature	Mineral oil with standard seals: 0° to 180°F (-20°C to +80°C) Fire resistant fuids HFB, HFC 0° to 150°F (-20°C to +65°C)
Filtration	According to ISO 4406 code: • 20/18/15 at 2000 psi/140 bar • 19/17/14 at 3000 psi/210 bar • 17/15/12 at 4000 psi/275 bar
Direction of rotation (looking at the drive shaft)	CW, CCW, Bi-Rotational
Multiple pump assemblies	Single, Multiple, Piggyback, Thru-Drive
Separate or common inlet capability	Common

Please see the PDF file for more detailed information about this product ↓

RPGP 315 330 350 365-Technical-Manual.pdf

Other Products

Company Profile

Ruichen Hydraulic Machinery Manufacturing Co., Ltd., established in 2000, is a global provider of high-quality hydraulic solutions. Located in Hebei Province, China, our 55,000 m² factory employs over 300 staff, including 15 engineers and 5 senior engineers. We specialize in cast iron gear pumps, gear motors, and hydraulic control valves, widely used in construction machinery, agricultural equipment, mining, and industrial applications.

Quality Certificate

Message

PGP365 series OEM number：
3059113326 PGP365L578IBAB17-11**AB15-1DAB10-1**AB10-1
3059219484 PGP365L578**AB*17-7**AB*15-1**AB*07-1
3059310022 PGP365L478**AB22-7**AB22-1**AB10-1
3059330021 PGP365L478**AB*12-11**AB*12-1**AB*12-1
3229110038 PGP365L178*BIAB17-7**AB12-1
3229110046 PGP365L*198BIAB12-7AHAB12-1
3229110047 PGP365C598BIAB15-7DAAB07-1
3229110079 PGP365C478EFAB20-11
3229110089 PGP365C478**AB20-11HBAB12-1/ PGP315A196BNAB05-
3229110104 PGP365B598IBAB15-7DAAB07-1
3229110177 PGP365B578VOAB17-7NCAB15-1NCAB22-1
3229110180 PGP365B578NO*AB25-11CH*AB20-1
3229110181 PGP365B578NO*AB25-11CH*AB17-1
3229110185 PGP365B578NO*AB20-11CH*AB20-1
3229110186 PGP365B578JEAB15-7MHAB15-1
3229110191 PGP365B578FEAB15-7CHAB07-1
3229110194 PGP365B578FEAB07-7**AB17-1
3229110197 PGP365B578*IBAB15-11**AB10-1-DRYVALVE
3229110198 PGP365B578**AB17-11FAAB17-1(W2AMTG+ASPLINE)
3229110199 PGP365B578**AB15-7/ PGP330A**AB10-**
3229110200 PGP365B578**AB15-7**AB10-1MKAB07-1
3229110201 PGP365B498BIAB25-7AFAB15-1
3229110204 PGP365B498BIAB12-7AMAB12-1
3229110205 PGP365B498BIAB10-7APAB10-1
3229110206 PGP365B498**AB20-11CPAB10-1
3229110207 PGP365B498**AB15-11/ PGP330A**AB10-**
3229110208 PGP365B478ON*AB20-11HC*AB20-1
3229110209 PGP365B478OM*AB15-**CL*AB10-1CM*AB17-1
3229110210 PGP365B478NO*AB25-7CH*AB17-1
3229110211 PGP365B478EKAB12-11HCAB10-1
3229110213 PGP365B478EJAB25-7CJAB15-1HMAB10-1
3229110214 PGP365B478EGAB20-11HBAB15-1
3229110230 PGP365B478BTAB12-7**AB12-1
3229111007 PGP365B478BIAB20-11ACAB20-1
3229111008 PGP365B478BIAB15-7AFAB17-1CLAB17-1
3229111014 PGP365B478BIAB15-11DPAB15-1
3229111015 PGP365B478BI*AB20-7*CM*AB17-1AH*AB12-1
3229111017 PGP365B478BI*AB*17-7*AH*AB*17-1HF*AB*12-1
3229111023 PGP365B478*BIAB15-11APAB10-1-FOR-DRYVALVE
3229111027 PGP365B478*BI*AB20-7*CM*AB17-1AH*AB12-1
3229111028 PGP365B478*BI*AB*17-7*CM*AB*17-1AH*AB*12-1
3229111029 PGP365B478**AB25-11HBAB25-1/ PGP330A**AB07-**
3229111030 PGP365B478**AB22-7AFAB17-1HF*AB10-1
3229111032 PGP365B478**AB22-7/ PGP330ABNAB17-**
3229111034 PGP365B478**AB17-7(W/2BMTG+BSPLN)
3229111035 PGP365B478**AB12-7CPAB10-1/ PGP330A**AB05-**
3229111036 PGP365B478**AB*15-7***AB*12-1/ PGP330A**AB17-*
3229111037 PGP365B442BIAB17-7AFAB15-1
3229111038 PGP365B298IBAB17-7**AB15-1
3229111039 PGP365B298*IBAB20-7CUAB20-1
3229111045 PGP365B298**AB15-7/ PGP330A297JFAB10-25
3229111208 PGP365B298***AB22-7/ PGP511A0190AA1H3VE6E5B1B1
3229111210 PGP365B278XOAB20-7QCAB12-1
3229111228 PGP365B278VOAB22-7NCAB12-1
3229111229 PGP365B278NOAB15-7CHAB10-1
3229112009 PGP365B278KEAB*15-7*NHAB*17-1NHAB*12-1
3229112012 PGP365B278IBAB20-11BDAB07-1
3229112013 PGP365B278GEAB*17-7*CHAB*15-1CHAB*12-1
3229112014 PGP365B278FEAB20-7LCAB15-1
3229112015 PGP365B278FE*AB20-7(W/2BMTG+BSPLN)
3229112018 PGP365B278EOAB20-7MAAB17-1
3229112206 PGP365B278CEAB25-7BHAB25-1
3229112207 PGP365B278CEAB25-7BHAB17-1BHAB15-1
3229112219 PGP365B278*SE*AB20-7SHAB12-1
3229114005 PGP365B278*FEAB*22-7CHAB*17-1
3229114006 PGP365B278**AB20-7**AB20-1/ PGP330ANBAB07-**
3229114011 PGP365B278**AB20-7*(W/2BMTG+BSPLN)
3229114012 PGP365B278**AB20-11
3229114013 PGP365B278**AB17-7/ PGP330A**AB07-*
3229114015 PGP365B278**AB15-11/ PGP330BBIAB10-**VDAB07-1
3229114016 PGP365B278**AB*12-7***AB*12-1(W2AMTG+ASPLINE)
3229114017 PGP365B278***AB20-7CHAB12-1/ PGP330AMEAB15-**
3229114018 PGP365B278***AB17-7/ PGP330A**AB05-**
3229114019 PGP365B278***AB17-7/ PGP315B296*VEAB20-65THA+
3229114021 PGP365B278***AB12-7**AB12-1
3229114022 PGP365B242BFAB20-7*
3229115011 PGP365B242*IBAB20-****AB20-1THAB17-1
3229115013 PGP365B198**AB22-7(W/2AMTG+ASPLN)
3229115015 PGP365B198**AB20-7/ PGP315A193EXAB10-96
3229115016 PGP365B198**AB20-7**AB12-1**AB10-1HNAB10-1/PG
3229115017 PGP365B198**AB15-7**AB12-1HNAB10-1/ PGP505A0+
3229115018 PGP365B198**AB15-7**AB12-1**AB10-1HNAB10-1/PG
3229115019 PGP365B198**AB12-7AHAB12-1(W/2BMTG+BSPLN)
3229115020 PGP365B198**AB12-7**AB12-1**AB10-1HNAB10-1/PG
3229115021 PGP365B198**AB12-7**AB10-1HNAB07-1/ PGP505A0+
3229115022 PGP365B198**AB07-7/ PGP330AEZAB05-**
3229115023 PGP365B178OXAB20-7CQAB12-1
3229115109 PGP365B178OWAB20-7CNAB12-1
3229120001 PGP365B178OVAB22-7CNAB12-1
3229120012 PGP365B178ONAB16-7CLAB10-1
3229120015 PGP365B178EKAB*15-7*HNAB*15-1HNAB*10-1
3229120070 PGP365B178EKAB*12-7HNAB*17-1HNAB*10-1
3229120075 PGP365B178EK*AB22-7HCAB15-1HCAB*12-1
3229120127 PGP365B178EK*AB22-7HCAB15-1HCAB*07-1
3229120141 PGP365B178EJAB22-11HMAB22-1HMAB22-1        <
3229120149 PGP365B178EGAB25-7HCAB12-1
3229120152 PGP365B178EFAB25-7HCAB20-1
3229120154 PGP365B178EFAB25-7CJAB15-1
3229120165 PGP365B178EFAB*27-7*CJAB15-1                $
3229120166 PGP365B178BIAB20-7ACAB20-1
3229120168 PGP365B178BIAB17-7UCAB15-1
3229120169 PGP365B178*EK*AB22-7HCAB*15-1HC*AB*12-1
3229120174 PGP365B178*BIAB25-7UCAB25-1
3229120178 PGP365B178**AB20-7**AB10-1/ PGP330ABNAB15-**
3229120184 PGP365B178**AB17-7CLAB15-1HOAB12-1/ PGP330AN+
3229120186 PGP365B178**AB17-7CJAB15-1/ PGP330AFJAB12-*
3229120188 PGP365B178**AB17-7/P330A**AB07-**
3229120192 PGP365B178**AB13-7/ PGP330A**AB10-**-PRIV
3229120193 PGP365B178**AB13-7/ PGP330A**AB10-**-PRIV
3229120196 PGP365B178**AB10-7/ PGP330BBIAB15-****AB10-1
3229120199 PGP365B178**AB10-7**AB10-1/ PGP330AONAB15-**
3229121006 PGP365B178***AB15-7/ PGP330A**AB17-**
3229121008 PGP365B1278*SEAB17-7SHAB15-1
3229121010 PGP365A642*VCEB17-11
3229121011 PGP365A578TEAB12-73229121012 PGP365A578SEAB20-73229121013 PGP365A578REAB20-7
3229121014 PGP365A578CEAB22-7
3229121029 PGP365A578CEAB20-7
3229121403 PGP365A578CEAB17-7
3229122009 PGP365A578CEAB15-7
3229122011 PGP365A578CEAB12-7
3229122012 PGP365A578CEAB10-7
3229122013 PGP365A578CEAB07-7
3229122014 PGP365A578**AB15-11
3229122232 PGP365A542REAB22-7
3229122243 PGP365A542CEAB25-11
3229124012 PGP365A498ETAB20-7
3229124013 PGP365A498ETAB17-7
3229124022 PGP365A498ERAB17-7
3229124023 PGP365A498EMAB17-73229124024 PGP365A498EGAB17-73229124025 PGP365A498EFAB25-11
3229124106 PGP365A498ECAB25-11
3229124210 PGP365A497ESAB17-11
3229125010 PGP365A478FCAB17-7
3229125011 PGP365A478FBAB*25-11
3229125012 PGP365A478EHAB25-11
3229125013 PGP365A478EHAB*25-11
3229130017 PGP365A478EGAB15-7
3229130058 PGP365A297SEAB17-25
3229130060 PGP365A278SEAB20-7
3229130066 PGP365A278SEAB17-7
3229130067 PGP365A278GEAB20-7
3229130068 PGP365A278GEAB17-73229130069 PGP365A278FEAB17-7*
3229130072 PGP365A278FE*AB*25-11
3229130073 PGP365A278CEAB25-11
3229130074 PGP365A278CEAB22-11
3229130075 PGP365A278CEAB20-7
3229130076 PGP365A278*KEAB12-7
3229130077 PGP365A278*FEAB22-7*FORDRYVALVE
3229130078 PGP365A278*FEAB*25-11-FORDRYVALVE
3229130079 PGP365A278**AB22-7*(W/2AMTG+ASPLN)
3229130080 PGP365A278**AB15-7*(W/2BMTG+BBSPLN)
3229130081 PGP365A278**AB*27-7*
3229130082 PGP365A242NFAB17-11
3229130084 PGP365A242JFAB22-7*
3229131005 PGP365A198EVAB12-73229132003 PGP365A198EFAB20-11
3229134008 PGP365A198ECAB25-11
3229134010 PGP365A198*EFAB22-7
3229135206 PGP365A197EWAB10-25
3229140010 PGP365A197ESAB15-25
3229210045 PGP365A197ECAB20-25
3229210061 PGP365A1978*SEAB25-11
3229210062 PGP365A1978*SEAB22-11
3229210066 PGP365A178ETAB22-7
3229210067 PGP365A178ETAB17-7
3229210088 PGP365A178ERAB25-7
3229218012 PGP365A178ERAB20-7
3229218015 PGP365A178ERAB10-11
3229218016 PGP365A178EFAB25-11
3229218017 PGP365A178EFAB20-7
3229218019 PGP365A178EFAB20-7
3229218021 PGP365A178EFAB10-11
3229218022 PGP365A178ECAB25-11
3229218023 PGP365A178ECAB22-73229218024 PGP365A178ECAB22-11
3229218025 PGP365A178ECAB20-11
3229218026 PGP365A178**AB20-7
3229218027 PGP365A178**AB17-7
3229218028 PGP365A178**AB17-7
3229218029 PGP365A178**AB15-7
3229218030 PGP365A178**AB15-7
3229218031 PGP365A178**AB*27-7*
3229218038 PGP365A178***AB15-*
3229218039 PGP365A142ESAB25-11
3229219001 PGP365A142ESAB20-7
3229219004 PGP365A142EFAB17-11
