Rexroth Hydraulic Gear Pump 9510080522 3411929

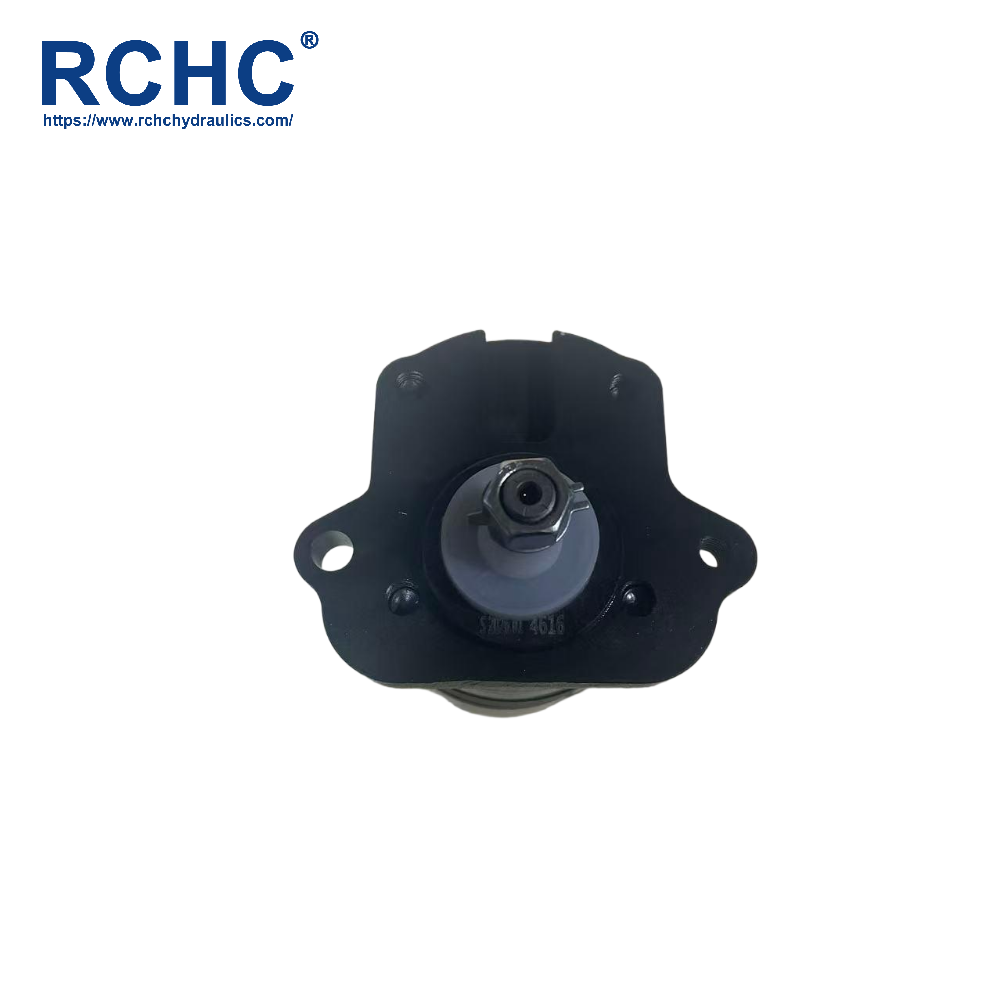

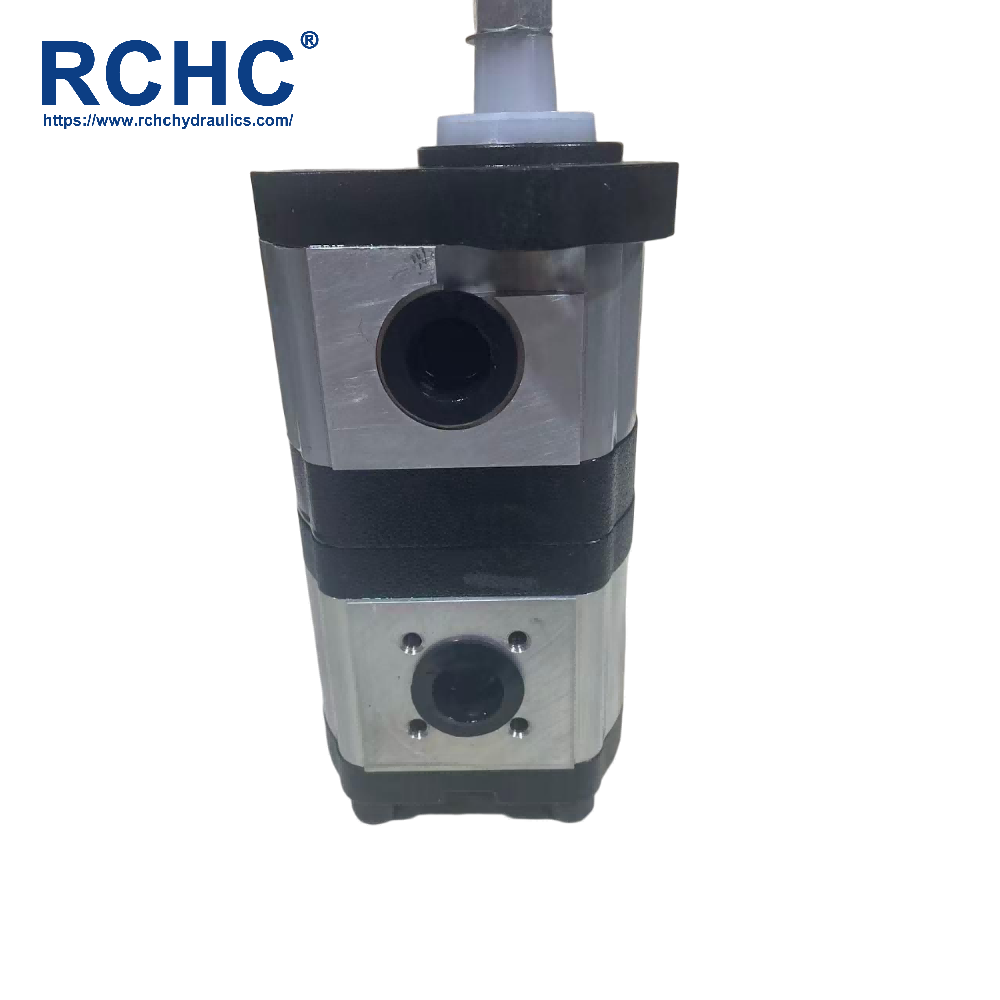

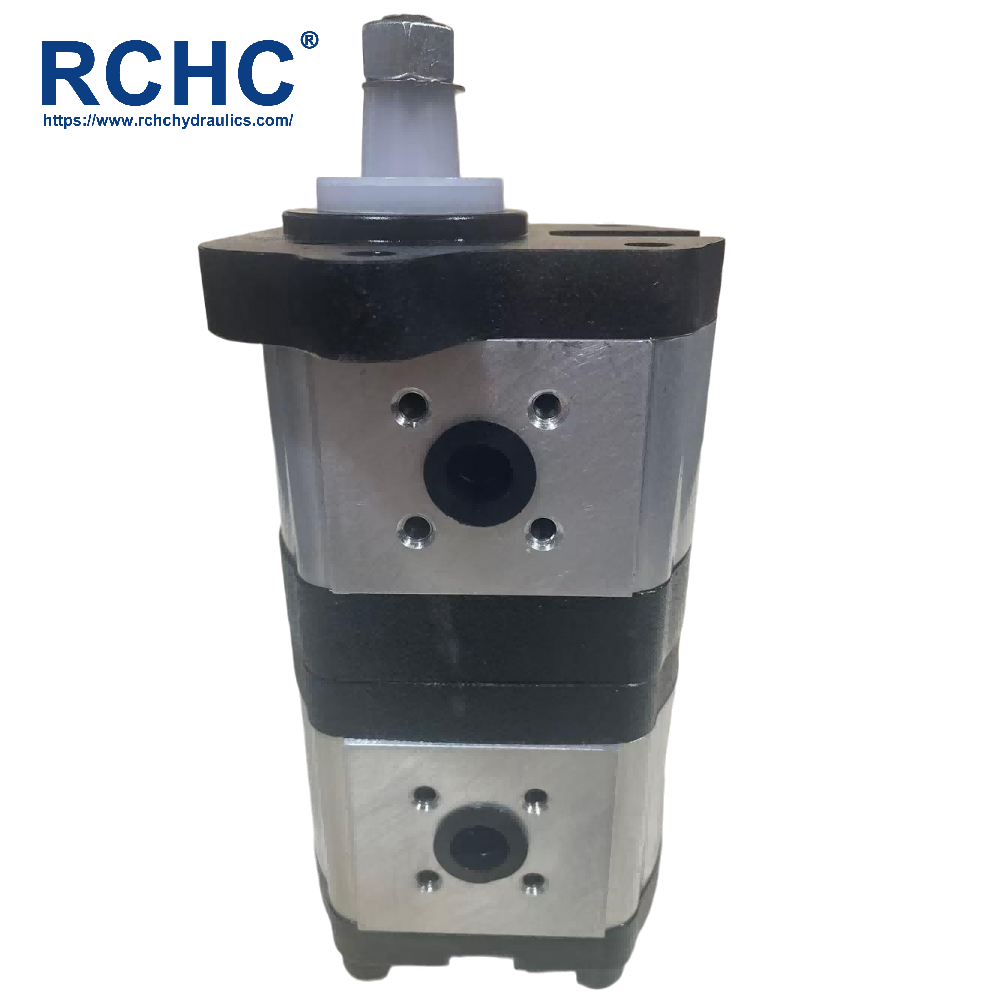

Rexroth 9510080522 Double Gear Pump – Premium OEM Replacement by RCHC

Product Overview

إن 9510080522 is a high-performance double hydraulic gear pump designed for Massey Ferguson tractors and heavy-duty agricultural machinery. This unit integrates a main hydraulic pump and a secondary steering/auxiliary pump into a single, compact housing.

Manufactured by RCHC, this product is engineered to be a direct 1:1 replacement for the original Bosch Rexroth OEM part. RCHC’s version ensures identical mounting dimensions and hydraulic performance, providing a cost-effective, high-durability alternative for farm equipment maintenance.

Manufacturer:RCHC (Premium Aftermarket Replacement)

Part Number:9510080522

OEM Cross-References:3411929M91, 3411929, 2122008002, 11112007001

Detailed Specifications

Technical Parameter	Specification Details
Pump Type	مضخة تروس مزدوجة
Displacement (P1 / P2)	7+11 cc/rev
Material	High-strength Cast Iron End Covers / Aluminum Body
Direction of Rotation	Anti-Clockwise (Left Hand Rotation)
Maximum Operating Pressure	250bar (Peak)
Rated Speed Range	500 – 3000 RPM
Flange Style	Pilot 52 mm 2F Flange
Drive Shaft Style	Tapered Shaft

Applications

This pump is primarily utilized in the hydraulic systems of Massey Ferguson (MF) tractors, supporting steering, lift, and auxiliary remote valves.

Compatible Vehicle Models:

• Massey Ferguson 200 Series: MF 290, MF 292, MF 297, MF 299
• Massey Ferguson 600 Series: MF 610, MF 620, MF 630, MF 640
• Other Applications: Compatible with select industrial loaders and harvesting equipment using Rexroth-style tandem pumps.

Why Choose RCHC’s 9510080522 Replacement?

1. Seamless Integration: Fully interchangeable with the original Rexroth 9510080522 without requiring modification to hydraulic lines or mounting brackets.
2. RCHC Precision Engineering: Built using high-precision CNC machining and high-grade seals to prevent internal leakage and ensure longevity under high-pressure cycles.
3. Cost Efficiency: Provides the same volumetric efficiency and mechanical reliability as OEM units at a more competitive price point for global distributors.
4. Tested Performance: Every unit undergoes a 100% dynamic pressure and flow test before leaving the factory.

Ordering Information

• Lead Time: Contact for current stock availability.
• Packaging: Secure industrial export packaging (Wooden box/Corrugated carton).
• Warranty: 12-month RCHC standard warranty against manufacturing defects.

Ruichen Hydraulic Machinery Manufacturing Co., Ltd., established in 2000, is a global provider of high-quality hydraulic solutions. Located in Hebei Province, China, our 55,000 m² factory employs over 300 staff, including 15 engineers and 5 senior engineers. We specialize in cast iron gear pumps, gear motors, and hydraulic control valves, widely used in construction machinery, agricultural equipment, mining, and industrial applications.
